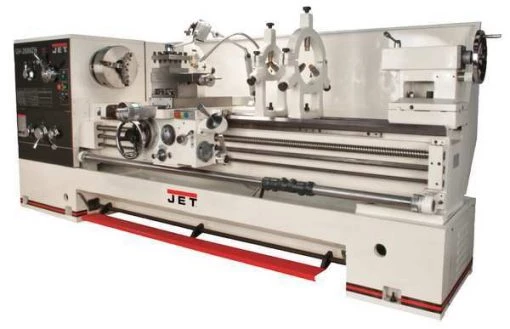

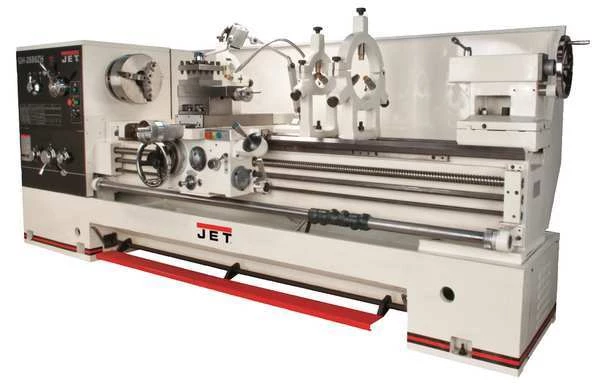

Jet Lathe, 230/460 Volts, 10 HP, 60 Hz, 3 Phase
Original price was: $536.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 120 in, Voltage 230/460, Horsepower 10, Min. Spindle Speed 36 RPM, Overall Height 57 in, Overall Length 177 in, Overall Width 43 in, Max. Spindle Speed 1,600 RPM, Tailstock Taper MT5, Spindle Nose Type D1-8 Camlock
Jet #321890 Specifications
- Zoro #: G9879371
- Mfr #: 321890
- Item: Lathe
- Motor HP: 10
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 26
- Horsepower: 10 hp
- Spindle Speed (RPM): 36 to 1600
- Tailstock Taper: MT3
- Longitudinal Feed Rates: 65
- Compound Travel (In.): 5-1/2
- Carriage Travel (In.): 108-1/4
- Number of Threads (mm): 30
- Overall Length: 177 in
- Number of Threads (In.): 30
- Number of Spindle Speeds: 12
- Spindle Taper: MT-5
- Gap Length (In.): 8
- Tailstock Travel (In.): 6
- Spindle Bore (In.): 4-1/8
- Thread Range (mm): 22
- Includes: (2) Steady Rests with Roller Bearings, (5) Large Capacity Steady Rests with Ball Bearing Tips, 12 in 3 Jaw Scroll Chuck, Drive Plate, E-Stop on Carriage, Electronic Chuck Key Holder, Faceplate, Follow Rest, Fully Integrated Coolant System, LED Work Lamp, Micro-Carriage Bed Stop, Quick Change Tool Post Set
- Swing Over Cross Slide (In.): 16-1/2
- Thread Range (In.): 48
- Distance Between Centers (In.): 120
- Cross Travel (In.): 12-3/32
- Swing In Gap (In.): 34
- Overall Height: 183 in
- Features: 4-1/8 in Spindle Boreclutch Operated Headstock with All Headstock Gears Hardened and Grounduniversal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Requiredmeehanite Castings are Used for Added Durability.Bed Ways are Induction Hardened and Ground for Durability.Full Length Splash Guardheavy-Duty Tailstock and Quillrapid Power Traverse to Cross Slide and Carriagesiemens Electricsstandard Equipment:
- Cross Feed Rates: 65
- Overall Width: 46 in
- Distance Between Centers: 120 in
- Min. Spindle Speed: 36 RPM
- Current: 0.54/0.27 A (Coolant Pump Motor), 2.85/1.65 A (Feed Motor), 25.4/12.7 A (Main Motor)
- Max. Threads per Inch: 30
- Min. Metric Thread: 1 mm
- Min. Cross Feed: 0.0040 in
- Max. Metric Thread: 14 mm
- Spindle Nose Type: D1-4 Camlock
- Spindle Bore: 4 1/8 in
- Min. Threads per Inch: 2
- Swing Over Cross Slide: 16 1/2 in
- Number of Inch Threads: 48
- Max. Spindle Speed: 1,600 RPM
- Gap Length: 8 in
- Number of Metric Threads: 22
- Swing In Gap: 34 in
- Swing Over Bed: 26 in
- Max. Cross Feed: 0.0404 in
- Bed Width: 9 1/2 in
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
