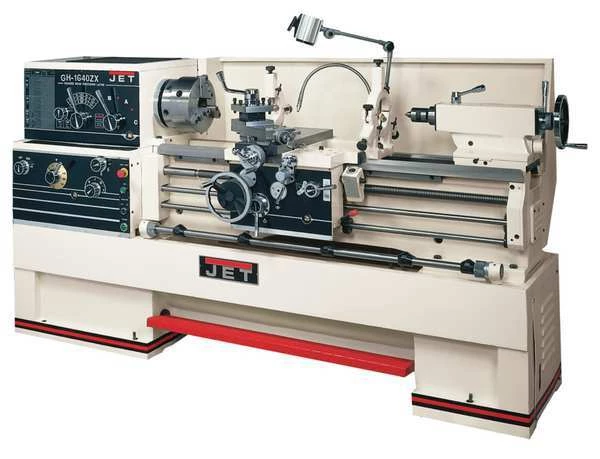

Jet Lathe, 230/460 Volts, 7 1/2 HP, 3 Phase
Original price was: $468.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 60 in, Voltage 230V AC, Horsepower 7 1/2 hp, Min. Spindle Speed 25 RPM, Application Turning, Overall Height 66 in, Overall Length 115 in, Overall Width 44 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT-7, Spindle Nose Type D1-8
Jet #321455 Specifications
- Zoro #: G9879475
- Mfr #: 321455
- Item: Lathe
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 16
- Horsepower: 7 1/2 hp
- Spindle Taper: MT-7
- Spindle Speed (RPM): 25 to 1800
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 200S DRO
- Cross Travel (In.): 9
- Number of Threads (mm): 24
- Tailstock Taper: MT-7
- Carriage Travel (In.): 55
- Swing Over Cross Slide (In.): 10
- Number of Spindle Speeds: 12
- Spindle Bore (In.): 3-1/8
- Thread Range (mm): .05 to 20
- Longitudinal Feed Rates: 122
- Thread Range (In.): 1-5/8 to 72
- Overall Length: 116 1/2 in
- Gap Length (In.): 12-1/4
- Overall Height: 116 1/2 in
- Cross Feed Rates: 122
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Overall Width: 40 in
- Number of Threads (In.): 61
- Distance Between Centers (In.): 60
- Compound Travel (In.): 5-1/8
- Tailstock Travel (In.): 5
- Bed Width (In.): 13-3/8
- Swing In Gap (In.): 25-7/8
- Max. Cross Feed: 0.0360 in
- Spindle Bore: 3 1/8 in
- Spindle Nose Type: D1-8
- Min. Metric Thread: 0.05 mm
- Max. Metric Thread: 20 mm
- Bed Width: 13 1/8 in
- Number of Metric Threads: 24
- Min. Threads per Inch: 1 5/8
- Swing In Gap: 25 1/2 in
- Swing Over Bed: 16 in
- Min. Cross Feed: 0.0006 in
- Max. Spindle Speed: 1,800 RPM
- Swing Over Cross Slide: 10 in
- Min. Spindle Speed: 25 RPM
- Number of Inch Threads: 61
- Distance Between Centers: 60 in
- Gap Length: 12 in
- Max. Threads per Inch: 72
- Application: Turning
- Sound Level: 88 dB
- Country of Origin (subject to change): China
