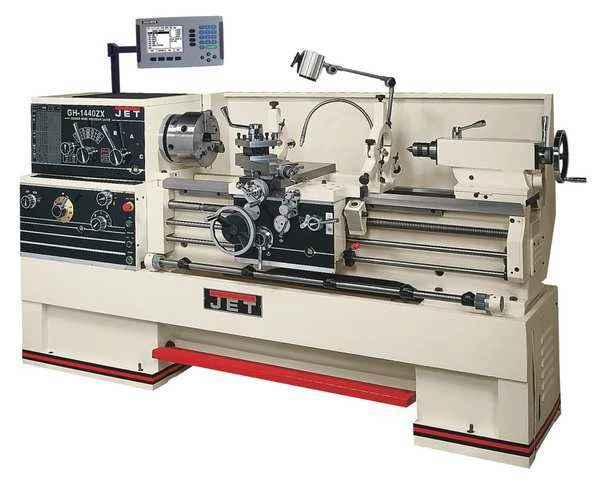

Jet Lathe, 230/460 Volts, 7 1/2 HP, 3 Phase
Original price was: $487.00.$95.99Current price is: $95.99.
Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 7 1/2 hp, Min. Spindle Speed 42 RPM, Application Turning, Overall Height 97 1/2 in, Overall Length 97 1/2 in, Overall Width 40 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3, Spindle Nose Type D1-8 Camlock
Jet #321301 Specifications
- Zoro #: G9879581
- Mfr #: 321301
- Item: Lathe
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 14
- Horsepower: 7 1/2 hp
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 300S DRO
- Swing In Gap (In.): 23-5/8
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Tailstock Taper: MT3
- Cross Travel (In.): 9
- Bed Width (In.): 13-3/8
- Spindle Speed (RPM): 25 to 1800
- Thread Range (In.): 1-5/8 to 72
- Cross Feed Rates: 12
- Tailstock Travel (In.): 5
- Distance Between Centers (In.): 60
- Number of Threads (mm): 24
- Number of Threads (In.): 61
- Longitudinal Feed Rates: 12
- Gap Length (In.): 12-1/4
- Overall Width: 40 in
- Overall Height: 97 1/2 in
- Swing Over Cross Slide (In.): 7-5/8
- Spindle Bore (In.): 3-1/8
- Thread Range (mm): .05 to 20
- Carriage Travel (In.): 35
- Overall Length: 97 1/2 in
- Compound Travel (In.): 5-1/8
- Spindle Taper: MT-7
- Number of Spindle Speeds: 12
- Min. Threads per Inch: 1 5/8
- Spindle Nose Type: D1-8 Camlock
- Distance Between Centers: 40 in
- Min. Spindle Speed: 42 RPM
- Max. Cross Feed: 0.0360 in
- Swing In Gap: 23 5/8 in
- Min. Cross Feed: 0.0006 in
- Bed Width: 9 3/8 in
- Max. Spindle Speed: 1,800 RPM
- Swing Over Bed: 14 in
- Swing Over Cross Slide: 7 5/8 in
- Number of Metric Threads: 24
- Gap Length: 12 1/4 in
- Spindle Bore: 3 1/8 in
- Number of Inch Threads: 61
- Min. Metric Thread: 0.05 mm
- Max. Metric Thread: 20 mm
- Max. Threads per Inch: 72
- Application: Turning
- Sound Level: 88 dB
- Country of Origin (subject to change): China
