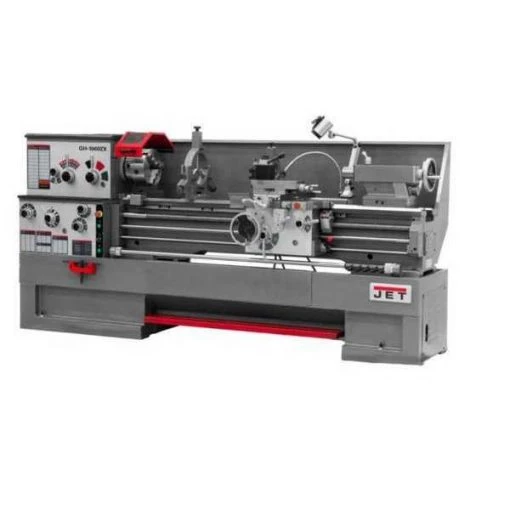

Jet Lathe, 230/460 Volts, 7 1/2 HP, 3 Phase
Original price was: $516.00.$98.99Current price is: $98.99.
Lathe, Distance Between Centers 60 in, Voltage 230/460V AC, Horsepower 7 1/2 hp, Min. Spindle Speed 25 RPM, Application Turning, Overall Height 116 1/2 in, Overall Length 116 1/2 in, Overall Width 40 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #321484 Specifications
- Zoro #: G9879441
- Mfr #: 321484
- Item: Lathe
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 18
- Horsepower: 7 1/2 hp
- Thread Range (mm): .05 to 20
- Spindle Bore (In.): 3-1/8
- Thread Range (In.): 1-5/8 to 72
- Distance Between Centers (In.): 60
- Number of Spindle Speeds: 12
- Spindle Speed (RPM): 25 to 1800
- Compound Travel (In.): 5-1/8
- Overall Height: 116 1/2 in
- Number of Threads (In.): 61
- Gap Length (In.): 12-1/4
- Number of Threads (mm): 24
- Carriage Travel (In.): 55
- Tailstock Travel (In.): 5
- Cross Feed Rates: 122
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 200S DRO
- Swing In Gap (In.): 27-1/2
- Spindle Taper: MT-7
- Overall Length: 116 1/2 in
- Swing Over Cross Slide (In.): 11
- Tailstock Taper: MT3
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Overall Width: 40 in
- Bed Width (In.): 13-3/8
- Longitudinal Feed Rates: 122
- Cross Travel (In.): 9
- Number of Metric Threads: 24
- Swing Over Cross Slide: 11 in
- Max. Spindle Speed: 1,800 RPM
- Spindle Nose Type: D1-4 Camlock
- Gap Length: 12 1/4 in
- Bed Width: 8 3/4 in
- Distance Between Centers: 60 in
- Spindle Bore: 3 1/8 in
- Min. Spindle Speed: 25 RPM
- Swing Over Bed: 18 in
- Min. Cross Feed: 0.0006 in
- Max. Cross Feed: 0.0360 in
- Max. Metric Thread: 20 mm
- Swing In Gap: 27 1/2 in
- Max. Threads per Inch: 72
- Min. Metric Thread: 0.05 mm
- Min. Threads per Inch: 1 5/8
- Number of Inch Threads: 61
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
