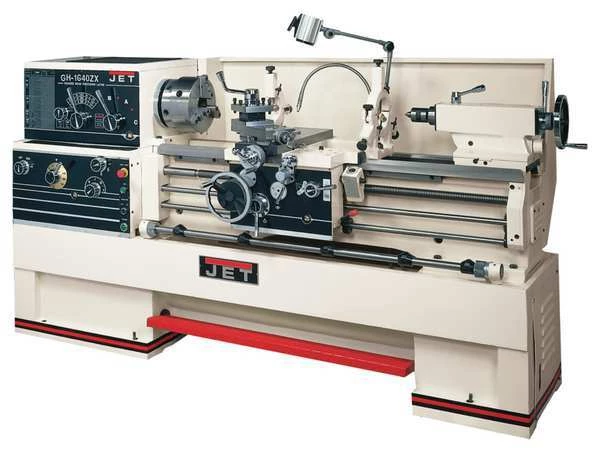

Jet Lathe, 230/460 Volts, 7 1/2 HP, 3 Phase
Original price was: $429.00.$97.99Current price is: $97.99.
Lathe, Distance Between Centers 40 in, Voltage 230/460, Horsepower 7 1/2, Min. Spindle Speed 42 RPM, Overall Height 47 in, Overall Length 97-1/2 in, Overall Width 40 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT4, Spindle Nose Type D1-8 Camlock
Jet #321507 Specifications
- Zoro #: G9879554
- Mfr #: 321507
- Item: Lathe
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 14
- Horsepower: 7 1/2 hp
- Swing In Gap (In.): 23-5/8
- Distance Between Centers (In.): 40
- Carriage Travel (In.): 35
- Compound Travel (In.): 5-1/8
- Number of Threads (mm): 24
- Overall Width: 40 in
- Spindle Bore (In.): 3-1/8
- Longitudinal Feed Rates: 122
- Spindle Speed (RPM): 42 to 1800
- Cross Travel (In.): 9
- Overall Height: 97 1/2 in
- Gap Length (In.): 12-1/4
- Spindle Taper: MT-7
- Thread Range (mm): .05 to 20
- Bed Width (In.): 13-3/8
- Cross Feed Rates: 122
- Number of Spindle Speeds: 12
- Tailstock Taper: MT3
- Number of Threads (In.): 61
- Thread Range (In.): 1-5/8 to 72
- Swing Over Cross Slide (In.): 7-5/8
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 200S DRO and Taper Attachment
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Tailstock Travel (In.): 5
- Overall Length: 97 1/2 in
- Max. Spindle Speed: 1,800 RPM
- Number of Inch Threads: 61
- Max. Metric Thread: 20 mm
- Spindle Nose Type: D1-4 Camlock
- Min. Cross Feed: 0.0006 in
- Bed Width: 9 3/8 in
- Min. Threads per Inch: 1 5/8
- Max. Cross Feed: 0.0360 in
- Spindle Bore: 3 1/8 in
- Gap Length: 12 1/4 in
- Min. Spindle Speed: 42 RPM
- Max. Threads per Inch: 72
- Distance Between Centers: 40 in
- Min. Metric Thread: 0.05 mm
- Swing Over Cross Slide: 7 5/8 in
- Number of Metric Threads: 24
- Swing In Gap: 23 5/8 in
- Swing Over Bed: 14 in
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
