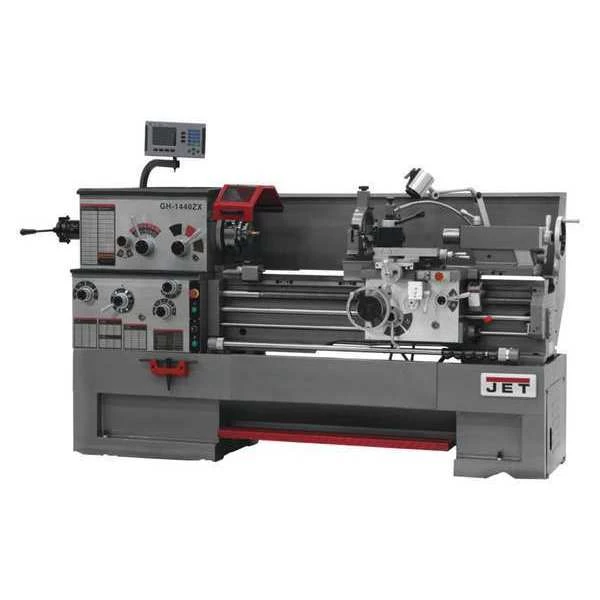

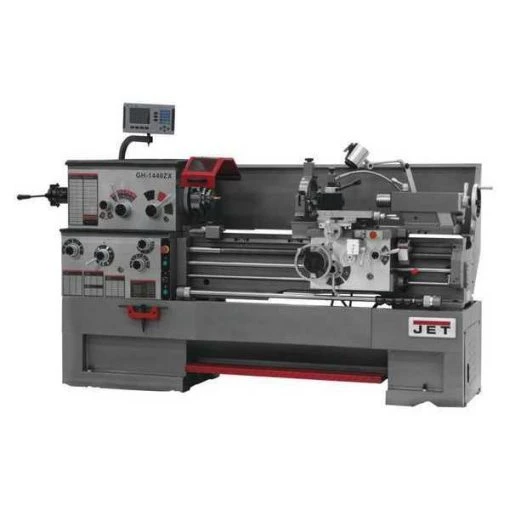

Jet Lathe, 230/460 Volts, 7 1/2 HP, 3 Phase
Original price was: $529.00.$98.99Current price is: $98.99.
Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 7 1/2 hp, Min. Spindle Speed 42 RPM, Application Turning, Overall Height 97 in, Overall Length 97 in, Overall Width 45 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3, Spindle Nose Type D1-8 Camlock
Jet #321469 Specifications
- Zoro #: G9879572
- Mfr #: 321469
- Item: Lathe
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 14
- Horsepower: 7 1/2 hp
- Overall Height: 97 in
- Spindle Bore (In.): 3-1/8
- Number of Threads (mm): 24
- Longitudinal Feed Rates: 122
- Cross Travel (In.): 9
- Number of Threads (In.): 61
- Tailstock Taper: MT3
- Tailstock Travel (In.): 5
- Compound Travel (In.): 5-1/8
- Number of Spindle Speeds: 12
- Thread Range (In.): 1-5/8 to 72
- Carriage Travel (In.): 36-9/16″
- Overall Length: 97 in
- Thread Range (mm): .05 to 20
- Swing Over Cross Slide (In.): 7-5/8
- Bed Width (In.): 13-3/8
- Spindle Taper: MT-7
- Overall Width: 45 in
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 200S DRO
- Swing In Gap (In.): 23-5/8
- Cross Feed Rates: 122
- Spindle Speed (RPM): 42 to 1800
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Gap Length (In.): 12-1/4
- Distance Between Centers (In.): 40
- Spindle Bore: 3 1/8 in
- Spindle Nose Type: D1-8 Camlock
- Max. Threads per Inch: 72
- Swing Over Cross Slide: 7 5/8 in
- Swing In Gap: 23 5/8 in
- Swing Over Bed: 14 in
- Min. Metric Thread: 0.05 mm
- Max. Spindle Speed: 1,800 RPM
- Gap Length: 12 1/4 in
- Bed Width: 9 3/8 in
- Min. Cross Feed: 0.0006 in
- Number of Inch Threads: 61
- Distance Between Centers: 40 in
- Max. Metric Thread: 20 mm
- Number of Metric Threads: 24
- Max. Cross Feed: 0.0360 in
- Min. Threads per Inch: 1 5/8
- Min. Spindle Speed: 42 RPM
- Application: Turning
- Sound Level: 88 dB
- Country of Origin (subject to change): China
