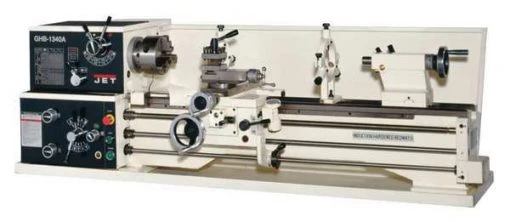

Jet Lathe, 230 Volts, 2 HP, 1 Phase
Original price was: $510.00.$92.99Current price is: $92.99.
Lathe, Distance Between Centers 43 in, Voltage 230, Horsepower 2, Min. Spindle Speed 70 RPM, Overall Height 28 1/2 in, Overall Length 79 in, Overall Width 30 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #321357A Specifications
- Zoro #: G5061095
- Mfr #: 321357A
- Item: Lathe
- Motor HP: 2
- Phase: Single
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 2 hp
- Includes: 12 in Faceplate, 6 in 3 Jaw Direct Mount Chuck with Top Reversing Jaws, 8 in 4 Jaw Chuck, Centers and Headstock Center Sleeve, Four-Way Tool Post, Metric Change Gear, Oil Pan, Splash Guard, Steady and Follow Rest, Threading Dial, Tolerance Test Certificate, Tool Box and Tools
- Number of Threads (In.): 38
- Thread Range (mm): 0.45 to 10
- Spindle Bore (In.): 1-3/8
- Overall Length: 79 in
- Overall Width: 30 in
- Overall Height: 79 in
- Gap Length (In.): 8
- Number of Threads (mm): 23
- Spindle Taper: MT-5
- Longitudinal Feed Rates: 40
- Swing Over Cross Slide (In.): 7-25/32
- Cross Feed Rates: 40
- Tailstock Travel (In.): 3-3/4
- Swing In Gap (In.): 18-3/4
- Cross Travel (In.): 6-5/16
- Tailstock Taper: MT3
- Bed Width (In.): 7-3/8
- Distance Between Centers (In.): 43
- Carriage Travel (In.): 35
- Compound Travel (In.): 2-11/16
- Number of Spindle Speeds: 8
- Features: One of the Most Popular Jet Lathes Now Comes with an Enclosed Gear Boxenclosed Gearbox Design Provides Smooth, Quiet Operation, Fast, Easy Speed Changeshardened and Ground Gears are Featured in the Headstock and Gearboxd1-4 Spindle is Precision Ground for Accuracy and Supperted by High Quality Tapered Roller Bearingsheadstock is Constantly Oiled During Operationgear Box Gives Wide Inch Threading and Feed Capabilities with No Gear Changesv-Way Bed is Induction Hardened and Groundgap Bed Section Provided for Large Diameter Workindependent Leadscrew and Feed Rod
- Thread Range (In.): 3-1/2 to 80
- Spindle Speed (RPM): 70 to 2000
- Application: Turning
- Spindle Nose Type: D1-4 Camlock
- Spindle Bore: 1 3/8 in
- Swing Over Cross Slide: 7 25/32
- Number of Inch Threads: 38
- Max. Spindle Speed: 2,000 RPM
- Min. Cross Feed: 0.0006 in
- Max. Metric Thread: 10 mm
- Spindle Dia.: 1 1/4 in
- Swing Over Bed: 13 in
- Number of Metric Threads: 23
- Swing In Gap: 18 3/4 in
- Min. Threads per Inch: 3 1/2
- Max. Threads per Inch: 80
- Min. Spindle Speed: 70 RPM
- Max. Cross Feed: 0.0130 in
- Gap Length: 8 in
- Distance Between Centers: 40 in
- Bed Width: 9 1/2 in
- Min. Metric Thread: 0.45 mm
- Sound Level: 88 dB
- Country of Origin (subject to change): China
