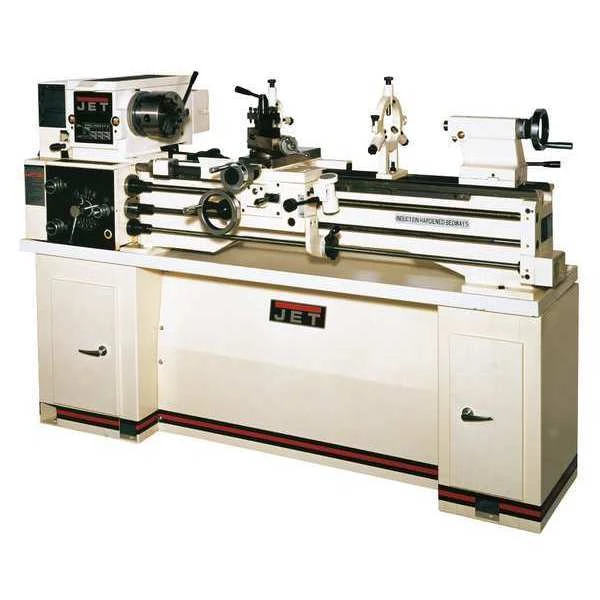

Jet Lathe, 230 Volts, 2 HP, 1 Phase
Original price was: $573.00.$91.99Current price is: $91.99.
Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 2 hp, Min. Spindle Speed 60 RPM, Application Turning, Overall Height 71 in, Overall Length 71 in, Overall Width 32 in, Max. Spindle Speed 1,240 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #321102AK Specifications
- Zoro #: G9879651
- Mfr #: 321102AK
- Item: Lathe
- Motor HP: 2
- Phase: Single
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 2 hp
- Thread Range (mm): 0.2 a 6
- Includes: 12 in Faceplate, 6 in 3 Jaw Direct Mount Scroll Chuck with Top Reversing Jaws, 8 in 4 Jaw Independent Chuck, Centers and Headstock Center Sleeve, Four-Way Tool Post, Metric Change Gear, Oil Pan, Steady And Follow Rest, Threading Dial, Tolerance Test Certificate, Tool Box with Tool
- Swing In Gap (In.): 18-3/4
- Tailstock Travel (In.): 3-3/4
- Spindle Bore (In.): 1-3/8
- Overall Width: 32 in
- Distance Between Centers (In.): 40
- Swing Over Cross Slide (In.): 7-25/32
- Spindle Speed (RPM): 60-1240
- Compound Travel (In.): 2-11/16
- Gap Length (In.): 8
- Bed Width (In.): 7-3/8
- Thread Range (In.): 4 a 112
- Number of Spindle Speeds: 12
- Cross Feed Rates: 40
- Longitudinal Feed Rates: 38
- Spindle Taper: MT-5
- Number of Threads (In.): 40
- Carriage Travel (In.): 35
- Features: One of the Most Popular Jet Lathes Now Comes with an Enclosed Gearbox as a Standard Featureenclosed Gearbox Design Provides Smooth, Quiet Operationfast, Easy Speed Changeslow Voltage Motor Controlshelical Cut Headstock Gears Reudce Noisechange Gears Allow Metric Threadingspindle is Supported by Precision Tapered Roller Bearingsv-Way Bed is Induction Hardened and Groundgap Bed Section Provided for Large Diameter Workindependent Leadscrew and Feed Rod
- Overall Height: 71 in
- Overall Length: 71 in
- Number of Threads (mm): 27
- Cross Travel (In.): 6-5/16
- Tailstock Taper: MT3
- Min. Spindle Speed: 60 RPM
- Bed Width: 9 3/8 in
- Spindle Bore: 1 3/8 in
- Swing Over Cross Slide: 7 25/32
- Max. Spindle Speed: 1,240 RPM
- Gap Length: 8 in
- Number of Metric Threads: 23
- Max. Threads per Inch: 72
- Max. Cross Feed: 0.0130 in
- Min. Cross Feed: 0.0006 in
- Spindle Nose Type: D1-4 Camlock
- Swing In Gap: 18 3/4 in
- Distance Between Centers: 40 in
- Spindle Dia.: 1 1/4 in
- Max. Metric Thread: 10 mm
- Min. Threads per Inch: 1 5/8
- Swing Over Bed: 13 in
- Min. Metric Thread: 0.45 mm
- Number of Inch Threads: 38
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
