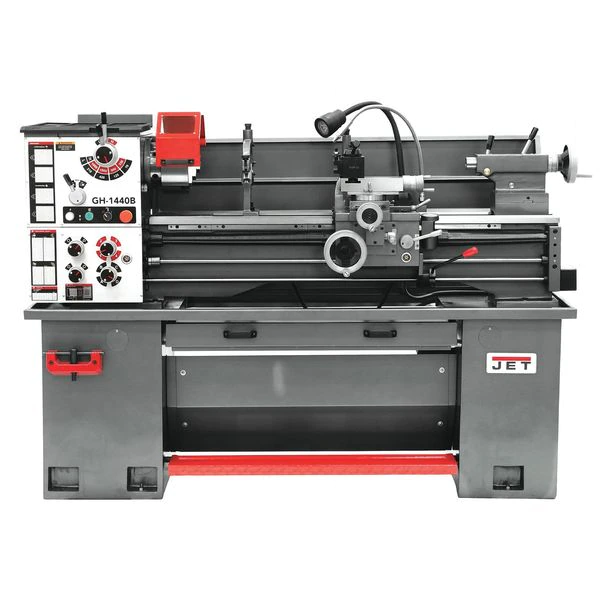

Jet Lathe, 230 Volts, 2 HP, 60 Hz, 1 Phase
Original price was: $473.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 40 in, Voltage 230, Horsepower 2, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 60 in, Overall Length 76 in, Overall Width 30 in, Max. Spindle Speed 1,900 RPM, Tailstock Taper MT4, Spindle Nose Type D1-5 Camlock
Jet #GH-1440B Specifications
- Zoro #: G3346198
- Mfr #: GH-1440B
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 2
- Phase: Single
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 14
- Horsepower: 2 hp
- Compound Travel (In.): 3-1/2
- Overall Width: 30 in
- Swing In Gap (In.): 20
- Hz: 60
- Tailstock Taper: MT5
- Bed Width (In.): 7-1/2
- Number of Threads (mm): 26
- Overall Height: 76 in
- Cross Feed Rates: 32/32
- Longitudinal Feed Rates: 0.002 -0.0548
- Coolant Tank Capacity: Not Rated
- Gap Length (In.): 8
- Number of Spindle Speeds: 8
- Spindle Taper: MT4
- Swing Over Cross Slide (In.): 21
- Includes: Stand
- Thread Range (In.): 4-56
- Carriage Travel (In.): 37-2/5
- Spindle Speed (RPM): 70-1900
- Number of Threads (In.): 34
- Distance Between Centers (In.): 40
- Tailstock Travel (In.): 4
- Spindle Bore (In.): 2
- Thread Range (mm): 0.4-7
- Overall Length: 76 in
- Features: Precision Spindle Roller Bearingshigh Quality Steel Hardened Gears in Headstocklead Screw Covercast Iron Standfoot Brake Comes Standardemergency Stop within Easy Reach of the Operatoremergency Stop within Easy Reach of the Operatorchuck Guard
- Cross Travel (In.): 7
- Number of Metric Threads: 26
- Number of Inch Threads: 34
- Spindle Nose Type: D1-5 Camlock
- Application: Metal Turning
- Max. Cross Feed: 0.0187 in
- Min. Spindle Speed: 70 RPM
- Spindle Dia.: 1 1/4 in
- Min. Cross Feed: 0.007 in
- Min. Metric Thread: 0.4 mm
- Gap Length: 8 in
- Swing Over Bed: 14 in
- Spindle Bore: 2 in
- Max. Metric Thread: 7 mm
- Swing Over Cross Slide: 8 in
- Bed Width: 9 3/8 in
- Min. Threads per Inch: 4
- Current: 15.3 A
- Swing In Gap: 20 in
- Sound Level: 88 dB
- Max. Threads per Inch: 56
- Max. Spindle Speed: 1,900 RPM
- Distance Between Centers: 36 7/8 in
- Country of Origin (subject to change): China
