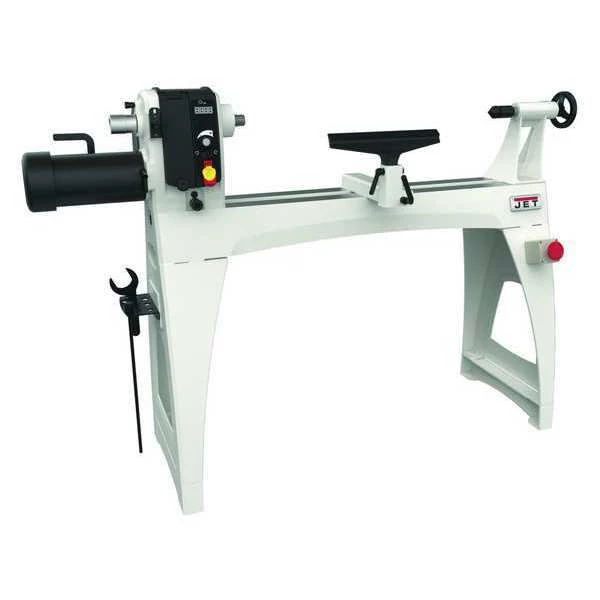

Jet Lathe, 230 Volts, 2 HP, 60 Hz, 3 Phase
Original price was: $430.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 40 in, Voltage 230, Horsepower 2, Min. Spindle Speed 40 RPM, Application Wood Turning, Overall Height 20 in, Overall Length 73 in, Overall Width 52 1/2 in, Max. Spindle Speed 3,200 RPM
Jet #JWL-1840EVS Specifications
- Zoro #: G7346538
- Mfr #: JWL-1840EVS
- Item: Lathe
- Primary Application: Wood Turning
- Motor HP: 2
- Phase: Three
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 18-1/2
- Horsepower: 2 hp
- Features: Sliding Headstock Pivots 360 Degrees with 7 Positive Locking Positions, Extended Spindle Nose Houses Dual Headstock Spindle Bearings, 4 in Cast Iron Risers Allow User to Adjust Height of Lathe for Maximum Comfort, Improved Tailstock Quill Locking Mechanism Incorporates an Anti-Rotation Key, Tailstock Features Acme Threads, Banjo Uses Non-Marring Positive Locking Wedge System to Securely Hold Tool Post, Spindle Lock Latch Frees Up Both Hands, Electronic Infinitely Variable Speed from 40 to 3200 RPM, 36 Integrated Indexing Positions, Newly Designed Headstock Locking Handle Accessible from Front of Lathe, Remote Emergency Stop Button Can Be Situated Along the Lathe Bed, Convenient Leg-Mounted Tool Holder, Rubber Tool Mat on Top of Headstock, E Drive Inverter Features a Built-In EMI Filter, Inverter is Enclosed for Added Protection
- Distance Between Centers (In.): 40
- Number of Threads (mm): 0
- Spindle Bore (In.): 5/8
- Bed Width (In.): 7-3/16
- Spindle Taper: MT-2
- Number of Spindle Speeds: Variable
- Hz: 60
- Overall Height: 28 in
- Overall Length: 73 in
- Includes: Faceplate, Knockout Rod, Live Cone Center, Live Single Bearing Center, Spur Center, Tool Rest, Tool Rest Extension
- Spindle Speed (RPM): 40 to 3200
- Number of Threads (In.): 0
- Overall Width: 58 in
- Spindle Bore: 5/8 in
- Max. Spindle Speed: 3,200 RPM
- Min. Spindle Speed: 40 RPM
- Bed Width: 8 in
- Application: Wood Turning
- Number of Inch Threads: 0
- Current: 5 A
- Swing Over Bed: 18 1/2 in
- Number of Metric Threads: 0
- Sound Level: 78 dB
- Distance Between Centers: 40 in
- Max. Threads per Inch: 56
- Min. Threads per Inch: 2
- Country of Origin (subject to change): Taiwan, Province of China
