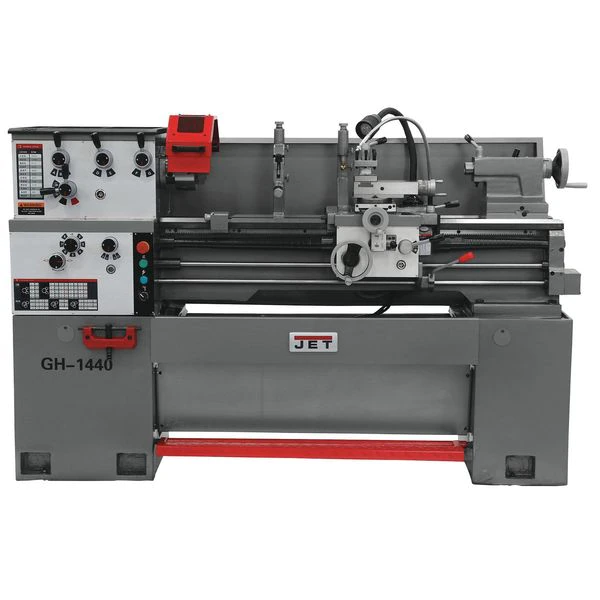

Jet Lathe, 230 Volts, 3 HP, 60 Hz, 1 Phase
Original price was: $464.00.$95.99Current price is: $95.99.
Lathe, Distance Between Centers 40 in, Voltage 230, Horsepower 3, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 56 1/2 in, Overall Length 74.8 in, Overall Width 30 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #GH-1440-1 Specifications
- Zoro #: G3346012
- Mfr #: GH-1440-1
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 3
- Phase: Single
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 14
- Horsepower: 3 hp
- Tailstock Travel (In.): 4-3/4
- Thread Range (In.): 4-112
- Spindle Speed (RPM): 40-1800
- Number of Spindle Speeds: 12
- Spindle Taper: MT-3
- Overall Length: 74 51/64 in
- Swing In Gap (In.): 20
- Carriage Travel (In.): 37-1/2
- Coolant Tank Capacity: Not Rated
- Bed Width (In.): 10-1/2
- Longitudinal Feed Rates: 0.0012 – 0.0294
- Cross Feed Rates: 40
- Overall Height: 74 51/64 in
- Number of Threads (In.): 40
- Tailstock Taper: MT5
- Spindle Bore (In.): 1-1/2
- Hz: 60
- Distance Between Centers (In.): 40
- Swing Over Cross Slide (In.): 8-1/5
- Cross Travel (In.): 6-3/8
- Thread Range (mm): 0.45-7.5
- Gap Length (In.): 9-3/8
- Compound Travel (In.): 3-1/2
- Number of Threads (mm): 23
- Features: Not Keyed, Shafts are Utilizedd1-4 Spindle is Precision Ground for Accuracy and Supported by High Quality Tapered Roller Bearingsindependent Leadscrew and Feed Rodadjustable Gibs are Incorporated in the Carriage and Slidewayssafety On/Off Switchemergency Stop within Easy Reach of the Operatorelectronic Chuck Key Docking Station, V-Way Bed Design is Induction Hardened and Groundsplined
- Includes: 1 PH, 14×40 ENGINE LATHE 3HP, 220V
- Overall Width: 30 in
- Swing In Gap: 20 in
- Distance Between Centers: 40 in
- Max. Spindle Speed: 1,800 RPM
- Max. Metric Thread: 7.5 mm
- Number of Metric Threads: 23
- Spindle Bore: 1 1/2 in
- Max. Cross Feed: 0.0103 in
- Spindle Dia.: 1 3/4 in
- Swing Over Cross Slide: 8 13/64 in
- Application: Metal Turning
- Spindle Nose Type: D1-4 Camlock
- Gap Length: 9 3/8 in
- Min. Metric Thread: 0.45 mm
- Swing Over Bed: 14 in
- Bed Width: 9 3/8 in
- Sound Level: 78 dB
- Number of Inch Threads: 40
- Min. Spindle Speed: 40 RPM
- Min. Cross Feed: 0.0004 in
- Min. Threads per Inch: 4
- Current: 18 A
- Max. Threads per Inch: 112
- Country of Origin (subject to change): China
