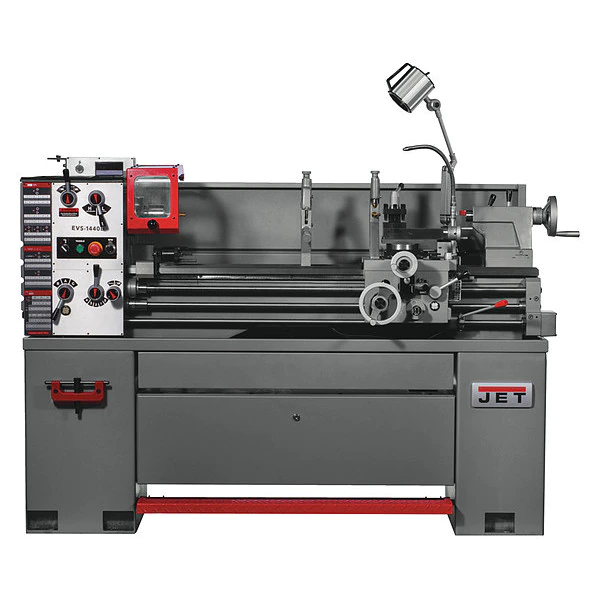

Jet Lathes
Original price was: $477.00.$91.99Current price is: $91.99.
Lathes, Distance Between Centers 40 in, Voltage 230/460V AC, Horsepower 3 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 68 1/2 in, Overall Length 74 in, Overall Width 28 19/64 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #311450 Specifications
- Zoro #: G1896860
- Mfr #: 311450
- Item: Lathes
- Phase: Three
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Horsepower: 3 hp
- Overall Length: 74 in
- Includes: Taper Attachment
- Overall Width: 28 19/64 in
- Tailstock Taper: MT3
- Overall Height: 68 1/2 in
- Spindle Bore: 1 1/2 in
- Number of Inch Threads: 34
- Max. Threads per Inch: 56
- Max. Spindle Speed: 2,000 RPM
- Distance Between Centers: 40 in
- Number of Metric Threads: 34
- Min. Threads per Inch: 2
- Max. Metric Thread: 12 mm
- Application: Metal Turning
- Swing In Gap: 19 1/2
- Bed Width: 9 1/2 in
- Min. Metric Thread: 0.5 mm
- Swing Over Cross Slide: 9 1/16
- Sound Level: 88 dB
- Min. Spindle Speed: 40 RPM
- Swing Over Bed: 14 in
- Spindle Nose Type: D1-4 Camlock
- Country of Origin (subject to change): Taiwan, Province of China
