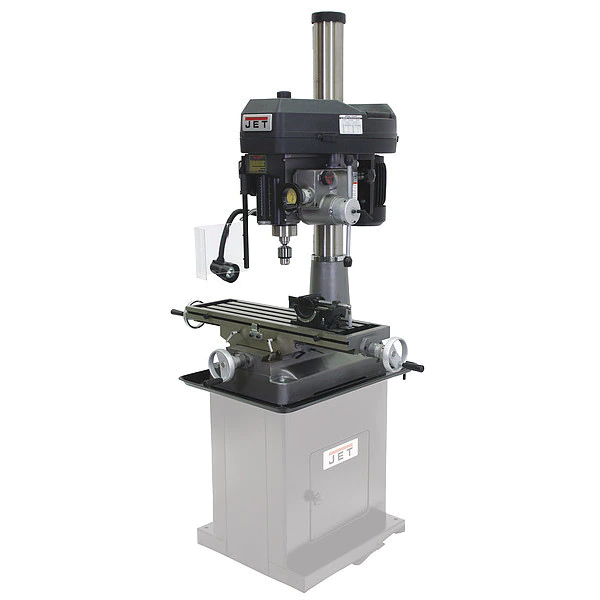

Jet Mill Drill, 26 In, 2 HP
Original price was: $542.00.$98.99Current price is: $98.99.
Mill Drill Machine, Phase 1, Swing 15 7/8 in
Jet #350020 Specifications
- Zoro #: G3498787
- Mfr #: 350020
- Swing: 15 7/8 in
- Voltage: 120/240V
- RPM: 150 to 3000
- Item: Mill Drill Machine
- Drilling Capacity Steel: 1 1/4 in
- Spindle Speed: 150 to 3000 rpm
- Face Milling Capacity: 3 in
- Motor HP: 2
- Phase: 1
- Longitudinal Travel: 20 1/2 in
- Cross Travel: 6 1/2 in
- Chuck Size: 1/2 in
- Amps: 26.0/13.0
- End Milling Capacity: 3/4 in
- Milling and Drilling Machine Product Grouping: Mill/Drill Machines
- Quill Dia.: 3 in
- Includes: Power Downfeed, Angle Vise
- Features: Follows Strict Guidelines and Electrical Requirements to be Certified by CSA Group, Belt Cover with Quick Slide Latch, Base Taper, UL Listed Motor
- Spindle to Table: 18 in
- Operation: Manual
- Corded/Cordless: Corded
- T-Slots: 5/8″
- Head: Belt Drive
- Spindle Travel: 5 in
- Column Dia.: 4-1/2 in
- Hz: 60
- Table Work Surface: 9-1/2 x 32-1/4 in
- Spindle: R8
- Corded/Banded: Corded
- Spindle Taper: R8
- Motor Type: TEFC – UL LISTED
- Motor Horsepower: 2
- Power Source: Corded
- Speed: 150 to 3000 rpm
- Frequency: 60Hz
- T-Slot Width: 5/8 in
- Country of Origin (subject to change): Taiwan, Province of China
