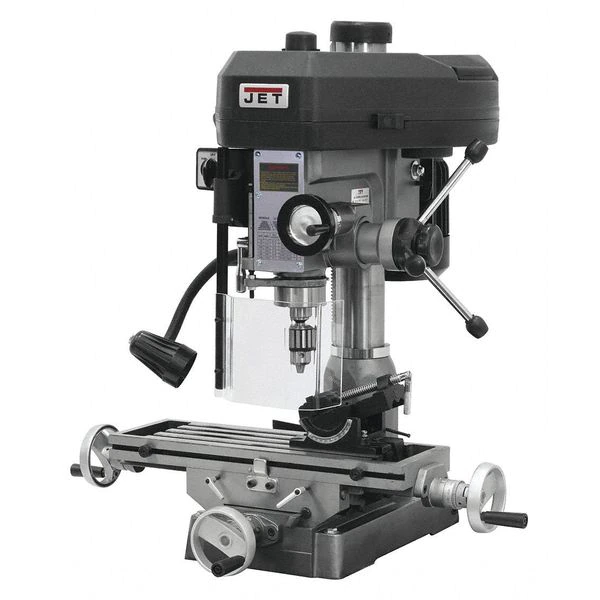

Jet Mill/Drill Machine, 1 HP
Original price was: $560.00.$94.99Current price is: $94.99.
Mill Drill Machine, Phase 1, Swing 14 1/2 in
Jet #350017 Specifications
- Zoro #: G9828813
- Mfr #: 350017
- Swing: 14 1/2 in
- Voltage: 120/240V
- RPM: 110 to 2580
- Item: Mill Drill Machine
- Drilling Capacity Steel: 1 in
- Spindle Speed: 110 to 2580 rpm
- Face Milling Capacity: 2 1/2 in
- Motor HP: 1
- Phase: 1
- Longitudinal Travel: 14 in
- Cross Travel: 5 1/2 in
- Chuck Size: 1/2 in
- Amps: 26.0/13.0
- End Milling Capacity: 1/2 in
- Features: 360 Degrees Head Swivel, Belt Cover, Cast Iron Column, Large Hand Wheel Knobs, Quick Slide Latch, Quick Stop Knob, UL Listed Motor
- Motor Type: TEFC – UL LISTED
- Quill Dia.: 2 7/16 in
- Spindle: R8
- Operation: Manual
- Corded/Cordless: Corded
- Corded/Banded: Corded
- T-Slots: 9/16″
- Head: Belt Drive
- Column Dia.: 3-5/8 in
- Spindle Taper: R8
- Spindle Travel: 3 1/2 in
- Spindle to Table: 15 in
- Table Work Surface: 7-1/2 in x 23 in
- Milling and Drilling Machine Product Grouping: Mill/Drill Machines
- Includes: Work Light, Chuck, Arbor, Draw Bar, Chuck Guard, Adjustable Carbide Facemill
- Hz: 60
- Power Source: Corded
- T-Slot Width: 9/16 in
- Frequency: 60Hz
- Speed: 110 to 2580 rpm
- Motor Horsepower: 1
- Country of Origin (subject to change): Taiwan, Province of China
