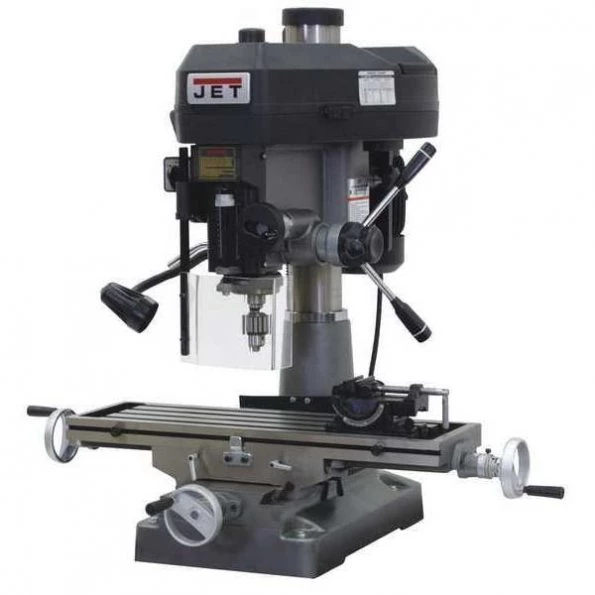

Jet Mill Drill Machine, 2 HP
Original price was: $548.00.$92.99Current price is: $92.99.
The JET 350018 Mill Drill Machine is the high-quality machine that will make your work easier. It comes with a variety of features to help you get the job done quickly and efficiently. With its 2 HP TEF. UL LISTED motor, this mill drill machine has more power than most other models on the market. The belt cover with quick slide latch makes it easy to open and close the cover without any hassle. The base taper provides greater stability while working on heavy pieces of material. This mill drill machine also comes with an R8 spindle taper, which is designed for precision cutting and grinding jobs. The JET 350018 Mill Drill Machine is built to last so you can rely on it in your workshop or factory for years to come.
Jet #350018 Specifications
- Zoro #: G4920386
- Mfr #: 350018
- Swing: 15 7/8 in
- Voltage: 120/240V
- RPM: 150 to 3000
- Item: Mill Drill Machine
- Drilling Capacity Steel: 1 1/4 in
- Spindle Speed: 150 to 3000 rpm
- Face Milling Capacity: 3 in
- Motor HP: 2
- Phase: 1
- Longitudinal Travel: 20 1/2 in
- Cross Travel: 6 1/2 in
- Chuck Size: 1/2 in
- Amps: 26.0/13.0
- End Milling Capacity: 3/4 in
- T-Slots: 5/8″
- Motor Type: TEFC – UL LISTED
- Operation: Manual
- Table Work Surface: 9-1/2 x 32-1/4 in
- Quill Dia.: 3 in
- Corded/Banded: Corded
- Spindle Travel: 5 in
- Corded/Cordless: Corded
- Spindle: R8
- Spindle to Table: 18 in
- Features: Follows Strict Guidelines and Electrical Requirements to be Certified by CSA Group, Belt Cover with Quick Slide Latch, Base Taper, UL Listed Motor
- Milling and Drilling Machine Product Grouping: Mill/Drill Machines
- Column Dia.: 4-1/2 in
- Head: Belt Drive
- Includes: Angle Vise
- Hz: 60
- Spindle Taper: R8
- Frequency: 60Hz
- Power Source: Corded
- Speed: 150 to 3000 rpm
- T-Slot Width: 5/8 in
- Motor Horsepower: 2
- Country of Origin (subject to change): Taiwan, Province of China
