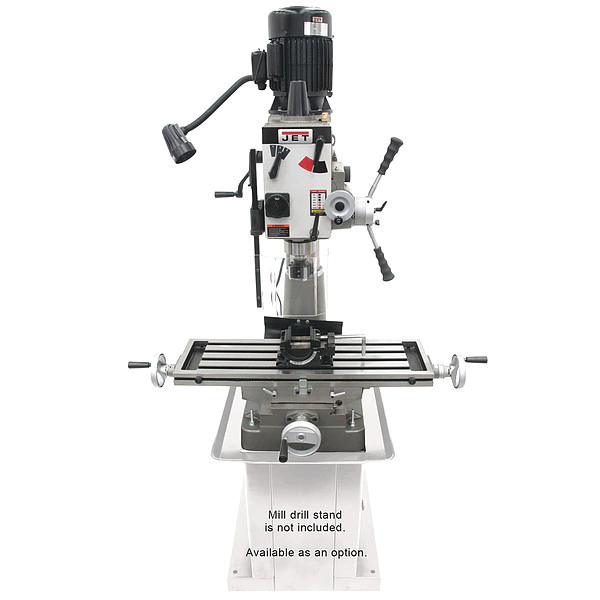

Jet Mill/Drill Machine, Swing 21-7/8"
Original price was: $440.00.$93.99Current price is: $93.99.
Mill Drill Machine, Phase 1, Swing 21 7/8 in
Jet #JMD-40GHPF Specifications
- Zoro #: G3939612
- Mfr #: JMD-40GHPF
- Swing: 21 7/8 in
- Voltage: 115/230V
- RPM: 1720
- Item: Mill Drill Machine
- Drilling Capacity Steel: 1 1/2 in
- Spindle Speed: 65 to 1550 rpm
- Face Milling Capacity: 3 in
- Lathe Capacity: 10 in to 20 in
- Motor HP: 1-1/2
- Phase: 1
- Longitudinal Travel: 20 1/2 in
- Cross Travel: 8 1/4 in
- Chuck Size: JT6
- Amps: 16.8/8.4
- End Milling Capacity: 3/4 in
- Spindle: R8
- Hz: 60
- Includes: Powerfeed, Chuck Guard
- Head: Gear Drive
- Features: CSA/CUS Certified, Easy to Read Internal Depth Gauge Head Tilts Left and Right 90 Degrees , Fine Down Feed Built-In, Full Power to the Cutting Tools Through 6-Speed Geared Head, Heavy Duty Design, Rapid Spindle Speed Changes Through Quickselect Gear Shift Levers, Spindle Guard, Work Lamp Calibrated
- Spindle Travel: 5 in
- Operation: Power
- Spindle Taper: R8
- Table Surface Height: 10 1/2 in
- Column Dia.: 4-1/2 in
- Corded/Banded: Corded
- T-Slots: 5/8″
- Quill Dia.: 3 in
- Table Work Surface: 9-1/2 x 32-1/4 in
- Spindle to Table: 15 3/4 in
- Corded/Cordless: Corded
- Graduations: 0.0010 in
- T-Slot Width: 5/8 in
- Speed: 1720 rpm
- Power Source: Corded
- Frequency: 60Hz
- Motor Horsepower: 1 1/2
- Country of Origin (subject to change): Taiwan, Province of China
