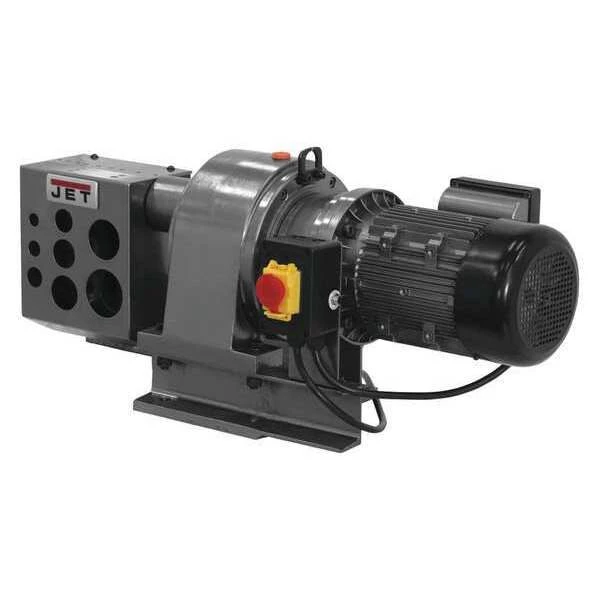

Jet Pipe Tube Notcher, 2 in Bending Length, 5 in Cutting Width, 0 Rolls
Original price was: $583.00.$95.99Current price is: $95.99.
Pipe and Tube Notcher, Maximum Compatible Pipe Size 2 in, Minimum Compatible Pipe Size 1/4 in, Maximum Notch Diameter 2 in, Maximum Pipe Wall Thickness 10 ga, Mounting Type Bench Mount, Ram Type Motor, Voltage 220V AC, Phase Single-Phase, Current 9 A
Jet #ESN-40 Specifications
- Zoro #: G7686318
- Mfr #: ESN-40
- Item: Pipe and Tube Notcher
- Bending Length (In.): 2 in
- Cutting Width (In.): 5 in
- Rolls: 0
- Capacity of Mild Steel (Gauge): 0.25
- Blade: Single Edge Hardened Steel
- Construction: Cast iron
- Max. Box Depth (In.): 33 15/32 in
- Features: Provides Fast and Clean 90 Degrees Notches In Schedule 40 Pipes to Maximize Productivity, The 220V AC Single Phase Machine is Designed to for Durability and Ease of Operation
- Overall Width: 18 7/8 in
- Ram Type: Motor
- Maximum Compatible Pipe Size: 2 in
- Includes: Magnetic Switch
- Nominal Voltage: 230V AC
- Minimum Compatible Pipe Size: 1/4 in
- Overall Height: 17 3/4 in
- Standards: CSA/US Certified
- Horsepower: 2 hp
- Tool Weight: 247 lb
- Maximum Pipe Wall Thickness: 10 ga
- Body Material: Cast Iron
- Current: 9 A
- Motor Type: Electric
- Maximum Notch Diameter: 2 in
- Nominal Voltage + Phase: 230V AC ; Single-Phase
- Body Color: Black
- Country of Origin (subject to change): China
