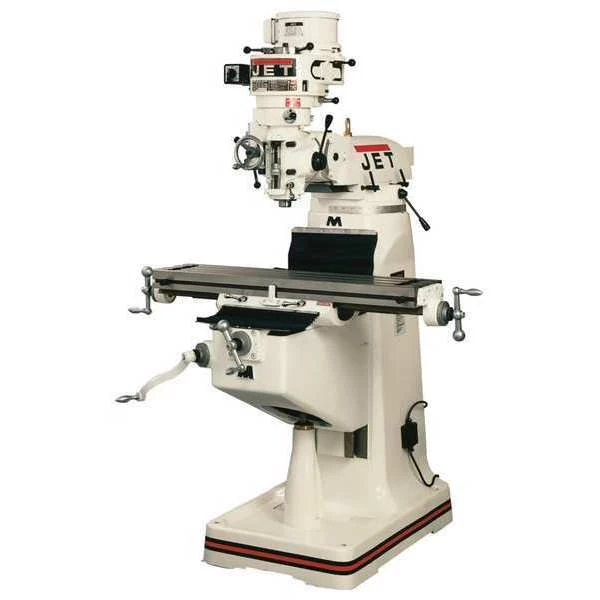

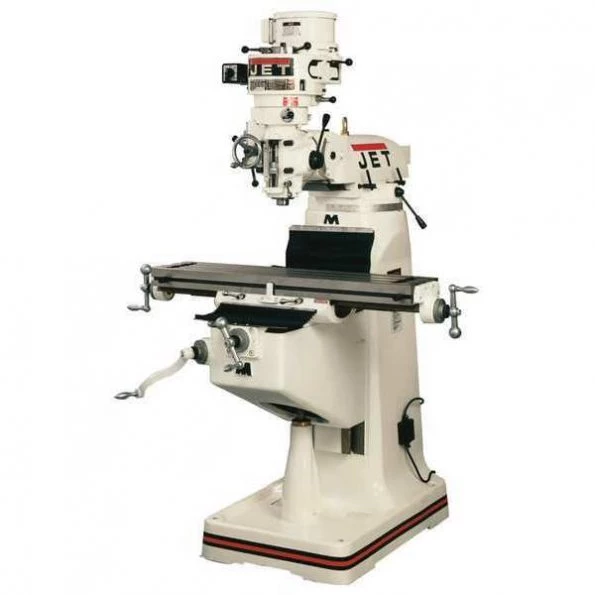

Jet Step Pulley Mill Machine, 3Ph, 2HP, 230V
Original price was: $420.00.$93.99Current price is: $93.99.
Knee/Column Milling Machine, Table Length 9 in, Table Width 42 in, 2, Table Load Capacity 550 lb, Phase 3, Voltage 230V, Longitudinal Travel 23-7/8 in, Cross Travel 12-1/2 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 5,440 RPM
Jet #690082 Specifications
- Zoro #: G5061113
- Mfr #: 690082
- Type: Step Pulley R8
- Table Size (In.): 9 x 42
- Voltage: 230V
- Item: Knee/Column Milling Machine
- Motor HP: 2
- Phase: 3
- Longitudinal Travel: 23-7/8 in
- Cross Travel: 12-1/2 in
- Longitudinal Travel (In.): 23.87
- Cross Travel (In.): 12-1/2
- Knee Travel (In.): 14-1/2
- Features: Meehanite casting, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle bearings, Spindle head is internally cooled, 2 year warranty
- T-Slot Size (In.): 3, 5/8
- Spindle to Table (In.): 17-1/2
- Spindle Speed (RPM): 80 to 5440
- Head Angle Front/Back (Deg.): 45
- Number of T-Slots: 3
- Quill Dia. (In.): 3-3/8
- Overall Width: 59
- Includes: One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
- Hz: 60
- Max. Table Weight (lbs.): 550
- Ram Travel (In.): 13-3/8
- Overall Depth: 69 in
- Quill Travel (In.): 5
- Spindle Taper: R-8
- Overall Height: 72 in
- Feed Rate for Power Down Feed (In.): 0.0015, 0.003, 0.006
- Head Angle (Deg.): 90
- Quill Dia.: 3 3/8 in
- Spindle Taper Size: R-8
- Forward Head Tilt: 45 Degrees
- Right-Hand Head Tilt: 90 Degrees
- Table Length: 9 in
- Overall Length: 64 in
- Spindle Travel Length: 5 in
- Min. Spindle to Table Distance: 17-1/2 in
- Ram Travel Length: 13-3/8 in
- Min. Spindle to Column Distance: 4-1/2 in
- Number of Spindle Speeds: 16
- Backward Head Tilt Adjustment: 45 Degrees
- Max. Spindle To Column Distance: 19 in
- Left-Hand Head Tilt: 90 Degrees
- Table Width: 42 in
- Max. Spindle Speed: 5,440 RPM
- Table Load Capacity: 550 lb
- Max. Spindle to Table Distance: 17 1/2 in
- Min. Spindle Speed: 80 RPM
- Horsepower: 2
- Country of Origin (subject to change): Taiwan, Province of China
