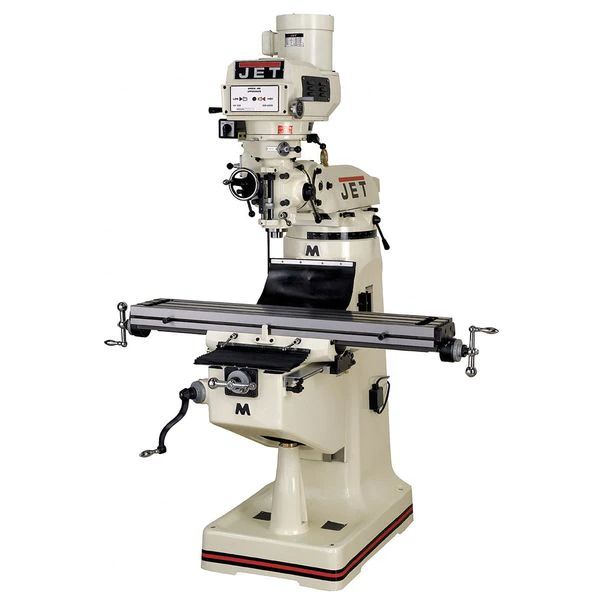

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V
Original price was: $496.00.$95.99Current price is: $95.99.
Knee/Column Milling Machine, Table Length 9 in, Table Width 49 in, 3, Table Load Capacity 660 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
Jet #690182 Specifications
- Zoro #: G9866936
- Mfr #: 690182
- Type: Variable Speed R8
- Table Size (In.): 9 x 49
- Voltage: 230/460V
- Item: Knee/Column Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 34 in
- Cross Travel: 12 in
- Longitudinal Travel (In.): 34.00
- Cross Travel (In.): 12
- Knee Travel (In.): 14-1/2
- Spindle Speed (RPM): 60 to 4200
- Overall Width: 65-1/2
- Quill Dia. (In.): 3-3/8
- Number of T-Slots: 3
- Quill Travel (In.): 5
- Feed Rate for Power Down Feed (In.): 0.0015, 0.003, 0.006
- Head Angle Front/Back (Deg.): 45
- Overall Height: 88 1/2 in
- Overall Depth: 63 in
- Ram Travel (In.): 13-3/8
- Spindle Taper: R-8
- Spindle to Table (In.): 17-1/2
- Includes: One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
- Max. Table Weight (lbs.): 660
- Features: Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
- Ram Swivel (Deg.): 360
- Hz: 60
- Head Angle (Deg.): 90
- T-Slot Size (In.): 0 3/8
- Quill Dia.: 3 3/8 in
- Forward Head Tilt: 45 Degrees
- Number of Spindle Speeds: Variable
- Min. Spindle Speed: 60 RPM
- Table Load Capacity: 660 lb
- Min. Spindle to Table Distance: 17-1/2 in
- Left-Hand Head Tilt: 90 Degrees
- Table Length: 9 in
- Right-Hand Head Tilt: 90 Degrees
- Horsepower: 3
- Max. Spindle To Column Distance: 19 in
- Ram Travel Length: 13-3/8 in
- Max. Spindle Speed: 4,200 RPM
- Table Width: 49 in
- Spindle Travel Length: 5 in
- Overall Length: 66 in
- Spindle Taper Size: R-8
- Ram Turret Swivel: 360 Degrees
- Max. Spindle to Table Distance: 17 1/2 in
- Backward Head Tilt Adjustment: 45 Degrees
- Min. Spindle to Column Distance: 4-1/2 in
- Country of Origin (subject to change): Taiwan, Province of China
