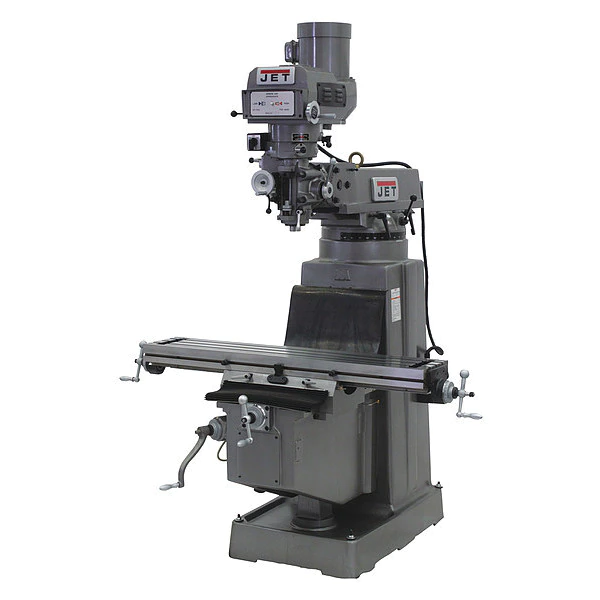

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V
Original price was: $577.00.$92.99Current price is: $92.99.
Variable Speed Milling Machine, Phase 3, Voltage 230/460
Jet #690214 Specifications
- Zoro #: G1940473
- Mfr #: 690214
- Type: Variable Speed R8
- Table Size (In.): 10 x 50
- Voltage: 230/460
- Item: Variable Speed Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel (In.): 35.00
- Cross Travel (In.): 15-1/4
- Knee Travel (In.): 14-1/4
- Head Angle (Deg.): 90
- Overall Width: 95-3/4
- Spindle Taper: R-8
- Quill Travel (In.): 5
- Spindle Speed (RPM): 70 to 3800
- Features: Meehanite casting, High Precision Class 7 spindle bearings, Hardened and ground table, Chrome lead screws on X and Y axis, Turcite B on X and Y axis, Satin chrome finish on dials, 2 year warranty, 30 point inspection
- Overall Depth: 68 3/4
- Number of T-Slots: 3
- Quill Dia. (In.): 3-3/8
- Ram Travel (In.): 20-1/2
- Max. Table Weight (lbs.): 720
- Feed Rate for Power Down Feed (In.): 0.0015, 0.003, 0.006
- T-Slot Size (In.): 0 3/8
- Head Angle Front/Back (Deg.): 45
- Spindle to Table (In.): 19
- Includes: 2-Axis ACU-RITE 200S, X and Y-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
- Overall Height: 87
- Hz: 60
- Country of Origin (subject to change): Taiwan, Province of China
