Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V
Original price was: $541.00.$91.99Current price is: $91.99.
Knee/Column Milling Machine, Table Length 9 in, Table Width 49 in, 3, Table Load Capacity 660 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
Jet #690098 Specifications
- Zoro #: G9879107
- Mfr #: 690098
- Voltage: 230/460V
- Item: Knee/Column Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 34 in
- Cross Travel: 12 in
- Hz: 60
- Spindle Taper: R-8
- Features: Mechanize Casting, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearings, Spindle Head is Internally Cooled, Satin Chrome Finished Dials, Heavy duty Splined Motor Drive, one piece Quill Pinion and Shaft, Three stage Power Down Feed with Automatic Stop, Three stage Power Down Feed with Automatic Stop, Heavy duty Spindle Brake, Precision Hardened and Ground Ways, Precision Ground Table, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
- Includes: One Shot Lubrication System, Locks On All Moveable Surfaces, Precision Hardened and Ground Way and Table, Way Covers, R8 Drawbar, Tool Box with Tools
- Number of T-Slots: 3
- Quill Dia.: 3 3/8 in
- Overall Height: 85 in
- Overall Depth: 66 in
- Left-Hand Head Tilt: 90 Degrees
- Forward Head Tilt: 45 Degrees
- Min. Spindle Speed: 60 RPM
- Max. Spindle To Column Distance: 19 in
- Number of Spindle Speeds: Variable
- Table Length: 9 in
- Spindle Taper Size: R-8
- Table Load Capacity: 660 lb
- Right-Hand Head Tilt: 90 Degrees
- Horsepower: 3
- Ram Travel Length: 13-3/8 in
- Max. Spindle to Table Distance: 17 1/2 in
- Overall Length: 63 in
- Backward Head Tilt Adjustment: 45 Degrees
- Max. Spindle Speed: 4,200 RPM
- Table Width: 49 in
- Spindle Travel Length: 5 in
- Min. Spindle to Column Distance: 4-1/2 in
- Country of Origin (subject to change): Taiwan, Province of China
Related Products
Helical Head Benchtop Jointer
Dust Collector, Two Filter System, Max. Flow (CFM) 1,700 cfm, Min. Air Flow (CFM) 800 cfm, Static Pressure Range (In.) 0.12 to 0.32, 1/3 hp HP, 115V AC Voltage, 60 Hz Hz, Single, 7.7 A Amps AC, Overall Height (In.) 20 9/32 in, Overall Width (In.) 24 in, Overall Depth (In.) 36 11/16 in, 60 to 75 dBA dBA, 10 micron Filter Bag, Cord Length 6 ft, Cord Type SJT 5-15P, Includes Holder, CFM at Max. S.P. 1,372 cfm
Collection Bags, Overall Height (In.) 2, Overall Dia. (In.) 20, Overall Width (In.) 9-1/4, Overall Depth (In.) 11, For Use With Jet Dust Collector, Package Quantity 5

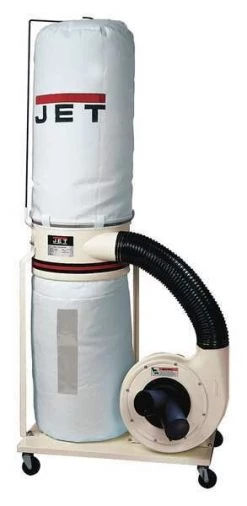

Dust Collector, Max. Flow (CFM) 1,100, Operating Velocity Range (FPM) 8,464, Static Pressure Range (In.) 10-1/2, 1 1/2 hp HP, 115/230 Voltage, 1, 11 to 5.5 Amps AC, Height (In.) 39 in, Width (In.) 22 1/2 in, Depth (In.) 37 in, Overall Height (In.) 72 in, Overall Width (In.) 22 1/2 in, Overall Depth (In.) 37 in, Hose Dia. (In.) 6 in, 75 to 80 dBA, 2 Filter Bag, Impeller Dia. (In.) 11 in, Includes (4) Casters
