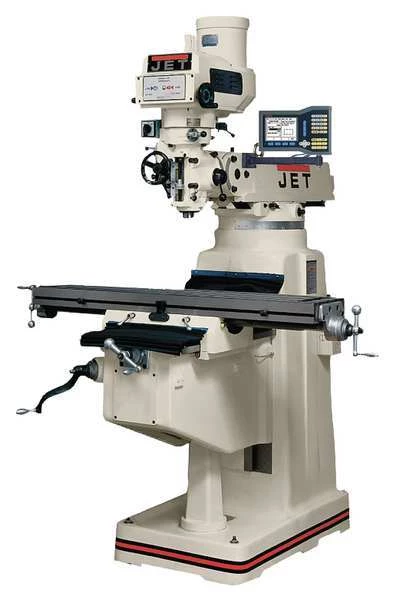

Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V
Original price was: $516.00.$91.99Current price is: $91.99.
Knee/Column Milling Machine, Table Length 10 in, Table Width 50 in, 3, Table Load Capacity 720 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 35 in, Cross Travel 15-1/4 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
Jet #691205 Specifications
- Zoro #: G9879186
- Mfr #: 691205
- Voltage: 230/460V
- Item: Knee/Column Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 35 in
- Cross Travel: 15-1/4 in
- Includes: One Shot Lubrication System, Locks On All Moveable Surfaces, Precision Hardened and Ground Way and Table, Way Covers, R8 Drawbar, Tool Box with Tools
- Hz: 60
- Spindle Taper: R-8
- Features: Mechanize Casting, Hardened and Ground Table, Chrome Lead Screws on X and Y Axis, Turcite B on X and Y Axis, Satin Chrome Finish on Dials, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearing, Spindle Head is Internally Cooled, No Fuse Breaker Power Connection, Heavy Duty Motor Drive, Chrome Plated Motor Shaft with Bearing Support at End, one Piece Quill Pinion and Shaft, Three Stage Power Down Feed with Automatic Stop, Heavy Duty Spindle Break, Locks on All Movable Surfaces, Hardened and Ground Square Vertical Knee Ways, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
- Overall Depth: 96 in
- Number of T-Slots: 3
- Overall Height: 88 in
- Quill Dia.: 3 3/8 in
- Overall Length: 78 in
- Max. Spindle To Column Distance: 26 in
- Spindle Travel Length: 5 in
- Left-Hand Head Tilt: 90 Degrees
- Horsepower: 3
- Ram Travel Length: 20-1/2 in
- Max. Spindle to Table Distance: 19 in
- Table Load Capacity: 720 lb
- Number of Spindle Speeds: Variable
- Table Width: 50 in
- Forward Head Tilt: 45 Degrees
- Backward Head Tilt Adjustment: 45 Degrees
- Spindle Taper Size: R-8
- Min. Spindle to Column Distance: 5-1/2 in
- Max. Spindle Speed: 3,800 RPM
- Right-Hand Head Tilt: 90 Degrees
- Table Length: 10 in
- Min. Spindle Speed: 70 RPM
- Country of Origin (subject to change): Taiwan, Province of China
