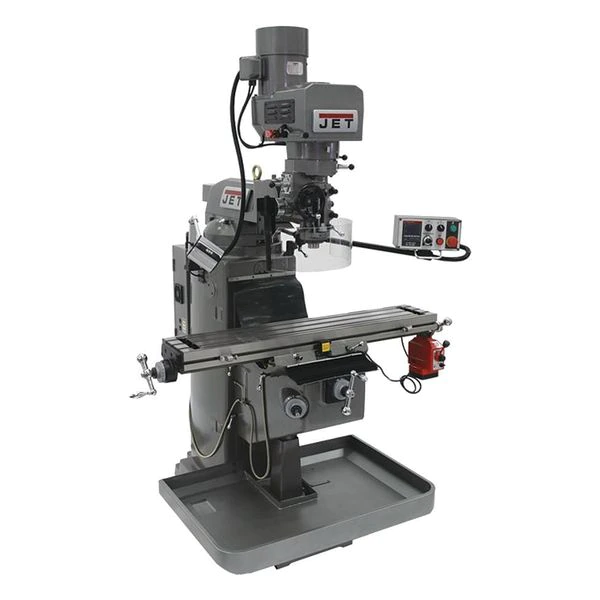

Jet Variable Speed Milling Machine, 3 HP, EVS
Original price was: $575.00.$95.99Current price is: $95.99.
Knee/Column Milling Machine, Table Length 9 in, Table Width 49 in, 3, Table Load Capacity 720 lb, Phase 3, Voltage 230V, Longitudinal Travel 36 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM
Jet #691500 Specifications
- Zoro #: G6423755
- Mfr #: 691500
- Type: EVS
- Table Size (In.): 9 x 49
- Voltage: 230V
- Item: Knee/Column Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 36 in
- Longitudinal Travel (In.): 36.00
- Cross Travel (In.): 12-5/8
- Knee Travel (In.): 15-3/4
- Spindle Taper: R-8
- Max. Table Weight (lbs.): 720
- Overall Width: 66″
- Overall Height: 85 in
- T-Slot Size (In.): 5/8
- Ram Travel (In.): 15-1/4
- Spindle Speed (RPM): 60 to 4500
- Includes: Mill, Chip Tray, Flat Way Cover, Pleated Way Cover, Draw Bar, (3) Table Adjustment Handles, Hardware Package
- Overall Depth: 66 in
- Quill Travel (In.): 5
- Hz: 60
- Head Angle (Deg.): 90
- Feed Rate for Power Down Feed (In.): 0.0015, 0.003, 0.006
- Spindle to Table (In.): 20-3/4
- Number of T-Slots: 3
- Head Angle Front/Back (Deg.): 45
- Features: Jet Designed Certified Meehanite(R) Casting with Enhanced Ribbing Ensures Rigidity and Tolerance Retention, Swing Away Control Box Houses An E-Stop and Puts All Controls At The Operators Fingertips, The Innovative Design of The Machine Base Provides An Easier Solution to Level The Machine Without Raising It Up Off The Floor, Automatic Oiler Releases 3 to 6 CC/CY of Lubrication Every 30 min. for Added Safety, The Heavy-Duty Spindle Break Stops The Spindle and Interrupts The Power, Preventing Accidental Start-Ups, The Electrical Box Has Been Relocated to The Back of The Mill and Houses (2) 115V Outlets for Powered Accessories, CSA/CUS Certified, Class 7 Spindle Bearings Support The Spindle for Maximum Rigidity In Heavy Cutting Applications, Spindle Head Is Internally Cooled Extending Bearing, Belt and Motor Life, Table and Ways are Hardened and Precision Ground for Greater Accuracy, 2 Axis
- Quill Dia. (In.): 3-3/8
- Quill Dia.: 3 3/8 in
- Right-Hand Head Tilt: 90 Degrees
- Spindle Taper Size: R-8
- Min. Spindle to Column Distance: 4-3/4 in
- Forward Head Tilt: 45 Degrees
- Left-Hand Head Tilt: 90 Degrees
- Horsepower: 3
- Table Length: 9 in
- Max. Spindle Speed: 4,500 RPM
- Min. Spindle to Table Distance: 20-3/4 in
- Max. Spindle To Column Distance: 18-1/8 in
- Backward Head Tilt Adjustment: 45 Degrees
- Ram Travel Length: 15-1/4 in
- Table Width: 49 in
- Overall Length: 63 in
- Table Load Capacity: 720 lb
- Spindle Travel Length: 5 in
- Max. Spindle to Table Distance: 20 3/4 in
- Min. Spindle Speed: 60 RPM
- Number of Spindle Speeds: Variable
- Country of Origin (subject to change): Taiwan, Province of China
