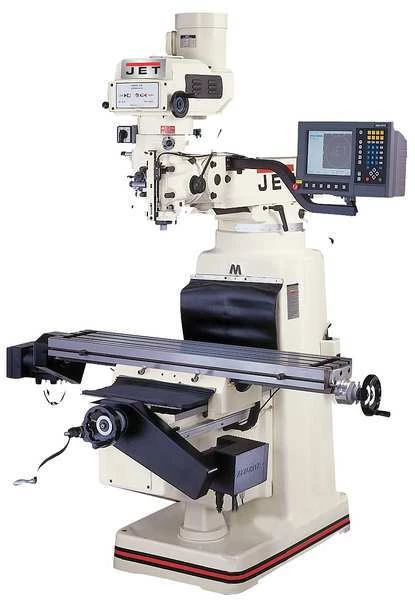

Jet Vertical Mill Machine, 3Ph, 3HP, 230/460V
Original price was: $406.00.$92.99Current price is: $92.99.
Knee/Column Milling Machine, Table Length 10 in, Table Width 50 in, 3, Table Load Capacity 720 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 35 in, Cross Travel 15-1/4 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
Jet #690940 Specifications
- Zoro #: G9879143
- Mfr #: 690940
- Type: CNC
- Table Size (In.): 10 x 50
- Voltage: 230/460V
- Item: Knee/Column Milling Machine
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 35 in
- Cross Travel: 15-1/4 in
- Longitudinal Travel (In.): 35.00
- Cross Travel (In.): 12
- Knee Travel (In.): 14-1/4
- Head Angle Front/Back (Deg.): 45
- Feed Rate for Power Down Feed (In.): 0.0015, 0.003, 0.006
- Spindle Taper: R-8
- Spindle Speed (RPM): 70 to 3800
- Quill Travel (In.): 5
- Number of T-Slots: 3
- Ram Travel (In.): 20-1/2
- T-Slot Size (In.): 0 3/8
- Includes: One-Shot Lubrication System, Locks On All Moveable Surfaces, Precision Hardened and Ground Way and Table, Way Covers, R8 Drawbar, Tool Box With Tools
- Overall Depth: 66 in
- Head Angle (Deg.): 90
- Overall Width: 85
- Features: CNC Vertical Milling Machine Package JTM-1050 , Features of the ACU-RITE MILLPWR G2 CNC Package , Precision Ground Ball Screws eliminate backlash for precice lateral movements , Closed loop feedback using Acu-Rite precision linear encoders with 0.00005″ resolution , Powerful DC Servo motor assemblies that include mounting castings and hardware, 2 year warranty, 30 point inspection
- Max. Table Weight (lbs.): 720
- Quill Dia. (In.): 3-3/8
- Overall Height: 63 in
- Spindle to Table (In.): 19
- Hz: 60
- Quill Dia.: 3 3/8 in
- Table Length: 10 in
- Table Width: 50 in
- Min. Spindle Speed: 70 RPM
- Spindle Taper Size: R-8
- Max. Spindle To Column Distance: 26 in
- Forward Head Tilt: 45 Degrees
- Min. Spindle to Table Distance: 19 in
- Ram Travel Length: 20-1/2 in
- Right-Hand Head Tilt: 90 Degrees
- Horsepower: 3
- Overall Length: 69 in
- Min. Spindle to Column Distance: 5-1/2 in
- Table Load Capacity: 720 lb
- Spindle Travel Length: 5 in
- Left-Hand Head Tilt: 90 Degrees
- Backward Head Tilt Adjustment: 45 Degrees
- Max. Spindle to Table Distance: 19 in
- Number of Spindle Speeds: Variable
- Max. Spindle Speed: 3,800 RPM
- Country of Origin (subject to change): Taiwan, Province of China
