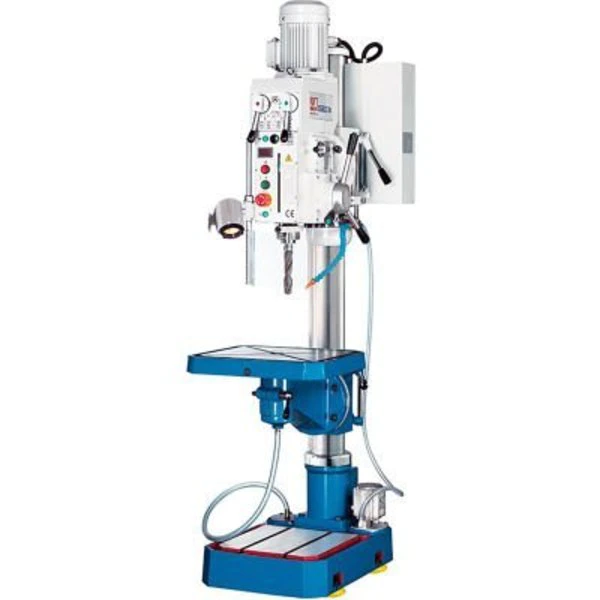

Knuth Machine Tools Usa, Inc 13" Column Drill Press – 1.6 HP, 220V, 3 Phase – Knuth SSB 32 Xn
Original price was: $431.00.$93.99Current price is: $93.99.
162332 universal drill press for workshop applications features: heavy cast-iron construction with thick-walled column tapping feature automatic drill feeds controlled by an electromagnetic clutch including coolant system and work lamp table rotates and swivels 45 2-step motor for 12 speed levels head swivels +/- 45, adjustable height digital speed (rpm) display working area drilling capacity: 1.26" tapping capacity, steel: m 20 table set up area: 20 x 17" table stroke: 19" quill stroke: 6" table swivel range (max.): +/- 45 spindle nose-to-table distance (max.): 25" spindle nose-to-foot distance: 47" throat: 13" column diameter: 5" head travel: 11" head swivel range: +/- 45 headstock spindle mount: mt 4 spindle speed: (12) 125 – 3,030 rpm feed quill feeds: 0,004; 0,008; 012 / 0,47 in/r in/r drive capacity motor rating / voltage: 1,6 hp / 400 v hp measures and weights overall dimensions (lxwxh): 33.07" x 19.68" x 77.17" weight: 1,188 lbs.
Knuth Machine Tools Usa, Inc #162332 Specifications
- Zoro #: G905294693
- Mfr #: 162332
- Country of Origin (subject to change): China
