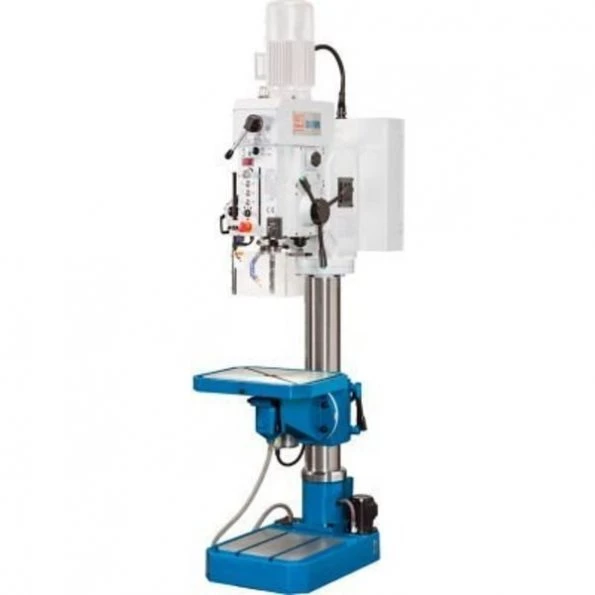

Knuth Machine Tools Usa, Inc 13" Column Drill Press – 2 HP, 220V, 3 Phase – Knuth SSB 40 F Super
Original price was: $571.00.$95.99Current price is: $95.99.
162337 production drill press with infinitely variable speed and tapping feature. Ideal for single part and series productions, for drilling, countersinking, reaming and tapping. features: very rigid construction with thick-walled column and large throat infinitely variable speed adjustment with back gearing and digital speed display 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop motorized table height adjustments digital boring depth display large drilling table with circumferential coolant groove, height adjustement, and +/- 45 swivel range tapping unit is standard working area: drilling capacity: 1.57" tapping capacity, steel: m 24 table set up area: 21 x 17" quill stroke: 7" manual table travel: 22.44" powered table travel: 16.93" table swivel range (max.): +/- 45 column diameter: 6" spindle nose-to-table distance (max.): 26" spindle nose-to-foot distance: 47" throat: 13" headstock: speed range: 60 – 2,600 rpm spindle mount: mt 4 feed: quill feeds: 0.004; 0.008; 0.012; 0.016 (4) in/r in/r drive capacity: motor rating main drive: 2.7 hp measures and weights: overall dimensions (l x w x h): 39.37" x 25.59" x 87.4" weight: 1,100 lbs.
Knuth Machine Tools Usa, Inc #162337 Specifications
- Zoro #: G305294682
- Mfr #: 162337
- Country of Origin (subject to change): China
