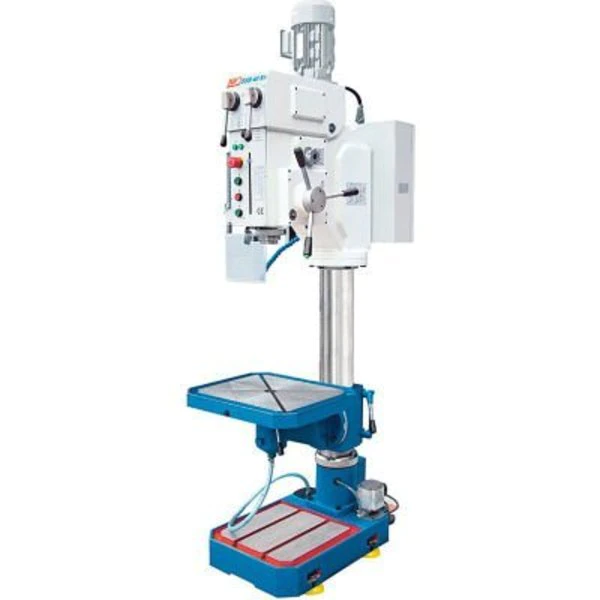

Knuth Machine Tools Usa, Inc 14" Column Drill Press – 2.1 HP, 220V, 3 Phase – Knuth SSB 40 Xn
Original price was: $531.00.$91.99Current price is: $91.99.
162338 universal drill press for workshop applications features: heavy cast-iron construction with thick-walled column tapping feature automatic drill feeds controlled by an electromagnetic clutch including coolant system and work lamp table rotates and swivels +/-45 working area: drilling capacity: 1.57" tapping capacity, steel: m 24 table set up area: 22" x 19" table stroke: 18" quill stroke: 7" table swivel range (max.): +/- 45 spindle nose-to-table distance (max.): 24" spindle nose-to-foot distance: 47" throat: 14" column diameter: 6" headstock: spindle mount: mt 4 spindle speed: (12) 60 – 2,300 rpm feed: quill feeds: 0,005; 0,01; 0,02 / 0,12 in/r in/r drive capacity: motor rating / voltage: 1,6 hp / 2,1 hp / 400v hp measures and weights: overall dimensions (l x w x h): 38.19" x 22.83" x 89.76" weight: 1,210 lbs.
Knuth Machine Tools Usa, Inc #162338 Specifications
- Zoro #: G305294668
- Mfr #: 162338
- Country of Origin (subject to change): China
