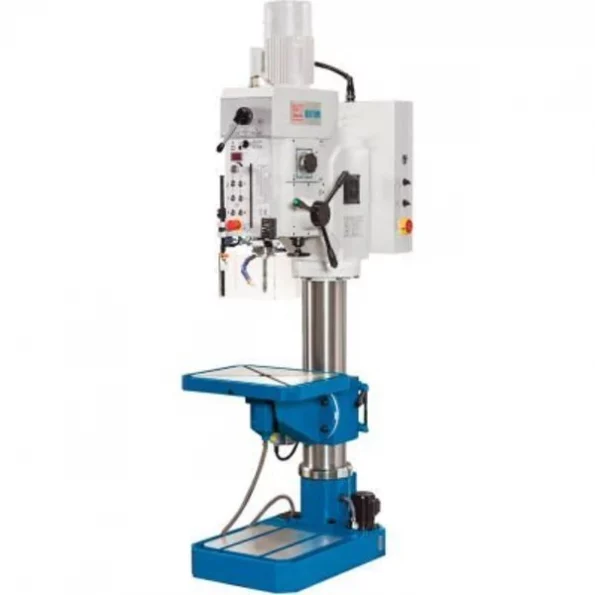

Knuth Machine Tools Usa, Inc 14" Column Drill Press – 4 HP, 220V, 3 Phase – Knuth SSB 50 F Super
Original price was: $538.00.$97.99Current price is: $97.99.
101668 production drill press with infinitely variable speed and tapping feature. Ideal for single part and series productions, for drilling, countersinking, reaming and tapping. features: very rigid construction with thick-walled column and large throat infinitely variable speed adjustment with back gearing and digital speed display 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop motorized table height adjustments digital boring depth display large table with circumferential coolant groove, height and tilt adjustment tapping unit is standard working area drilling capacity: 1.97" tapping capacity, steel: m 30 table set up area: 23 x 18" quill stroke: 8" manual table travel: 20.87" powered table travel: 16.14" table swivel range (max.): +/- 45 column diameter: 7" spindle nose-to-table distance (max.): 23" spindle nose-to-foot distance: 46" throat: 14" headstock speed range: 50 – 2,200 rpm spindle mount: mt 4 feed quill feeds: 0.004; 0.008; 0.012; 0.016 (4) in/r in/r drive capacity motor rating main drive: 3 hp measures and weights overall dimensions (lxwxh): 45.28" x 26.77" x 92.91" weight: 1430 lbs.
Knuth Machine Tools Usa, Inc #101668 Specifications
- Zoro #: G505294710
- Mfr #: 101668
- Country of Origin (subject to change): China
