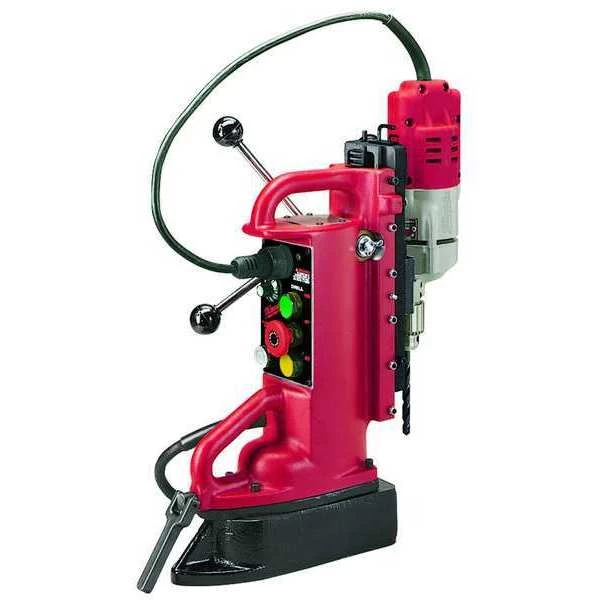

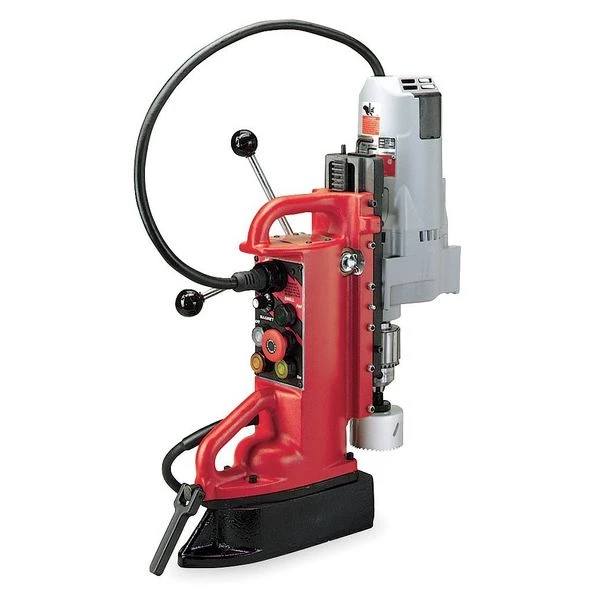

Milwaukee Adjustable Position Electromagnetic Drill Press w/1/2" Motor
Original price was: $517.00.$92.99Current price is: $92.99.
Magnetic Drill Press, Magnet Type Electro, Variable Speed No, Drilling Capacity in Steel 1/2 in, Drilling Capacity in Wood 1/2 in, Drilling Capacity in Cast Iron 1/2 in, Drill Travel 9 in, Maximum Spindle Speed 600 RPM, Current 7.2 A, Voltage 120V AC, Phase Single-Phase, Base Type Adjustable, Spindle Taper 1/2 in, Chuck Size 1/2 in, Chuck Style Keyed, Drill Point Pressure 1,650 lb, Power Down Feed Included Yes, Coolant System No, Tool Style Large, Tapping Compatible Yes, Cord Length 9 ft
Milwaukee #4204-1 Specifications
- Zoro #: G2690807
- Mfr #: 4204-1
- Promotion Restriction: Not eligible for promotion
- Item: Magnetic Drill Press
- Voltage: 120V AC
- Drill Travel: 9 in
- Capacity Steel: 1/2 in
- No Load RPM: 600
- Amps: 7.2 A
- Drill Point Pressure: 1,650 lb
- Magnet Type: Electro
- Overall Height: 25 1/4 in
- Corded/Cordless: Corded
- Corded/Banded: Corded
- Features: Forward/Reverse Electronic Feedback Speed Control, Line Lock Out, Soft Start
- Tool Length: 17 1/4 in
- Chuck Size: 1/2 in
- Motor Base No. Included: 6Z362
- Motor Stock No. Included: 6Z293
- Includes: 6-ft Safety Chain, Mfr. No. 48-66-1360 Chuck and Mfr. No. 48-66-3280 Key
- Drill to Center From Base: 1 1/4 in
- Reversible: Yes
- Tool Weight: 57.0 lb
- Motor HP: 1 1/4 hp
- Tap Size Capacity: 5/8 in
- Application: Drilling
- Overall Length: 17 1/4 in
- Maximum Core Bit Compatibility: 1/2 in
- Tapping Capacity in Masonry: 5/8″-18
- Spindle Travel: 9 in
- Tapping Compatible: Yes
- Drill Base Model Included: 4203
- Drilling Capacity in Aluminum: 1/2 in
- Variable Speed: No
- Phase: Single-Phase
- Drilling Capacity in Masonry: 1/2 in
- Drilling Capacity in Steel: 1/2 in
- Drilling Capacity in Cast Iron: 1/2 in
- Var. Speed: Single Speed
- Spindle Speed: 600 RPM
- Tapping Capacity in Aluminum: 5/8″-18
- Maximum Working Speed: 600 RPM
- Base Type: Adjustable
- Drilling Capacity in Wood: 1/2 in
- Power Source: Corded
- Drill Motor Model Included: 4253-1
- Tapping Capacity in Wood: 5/8″-18
- Tool Style: Large
- Number of Spindle Speeds: 1
- Number of Pieces: 2
- Cord Length: 9 ft
- Maximum Spindle Speed: 600 RPM
- Tapping Capacity in Cast Iron: 5/8″-18
- Power Down Feed Included: Yes
- Coolant System: No
- Chuck Style: Keyed
- Current: 7.2 A
- Tapping Capacity in Steel: 5/8″-18
- Country of Origin (subject to change): United States
