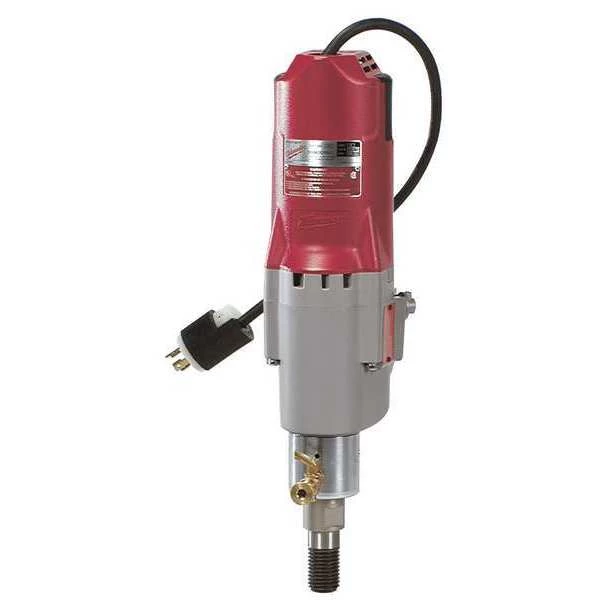

Milwaukee Diamond Coring Motor, 300/600 RPM, 20 Amp w/Clutch
Original price was: $544.00.$93.99Current price is: $93.99.
Diamond coring motors are used with Vac-U-Rig® and mooring diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 300 RPM or 600 RPM operating speed. The 4004 has a clutch to protect gears and motor against overload. This unit will handle core bits from 4 in. to 14 in. in diameter.
Milwaukee #4004-20 Specifications
- Zoro #: G2332443
- Mfr #: 4004-20
- Promotion Restriction: Not eligible for promotion
- Item: Diamond Coring Rig Motor
- Motor HP: 4 4/5 hp
- Amps: 20.0 A
- No Load RPM: 300/600
- Core Bit Cap Concrete: 14 in
- Corded/Cordless: Corded
- Features: Built-in Water Swivel, Clutch Protection
- Corded/Banded: Corded
- Tool Weight: 24.0 lb
- Includes: Open End Wrench, Water Control Valve, Water Hose Adapter
- Voltage: 120V AC
- Minimum Spindle Speed: 300 RPM
- Power Source: Corded
- Maximum Spindle Speed: 600 RPM
- Overload Protection Type: Clutch
- Overload Protection Clutch: Yes
- Current: 20 A
- Coring Capacity in Concrete: 14 in
- Nominal Voltage: 115V AC
- Horsepower: 4 4/5 hp
- Speed Setting: Variable Speed
- Number of Speed Settings: 2
- Phase: Single-Phase
- Plug Type: L5-20P
- Country of Origin (subject to change): United States
