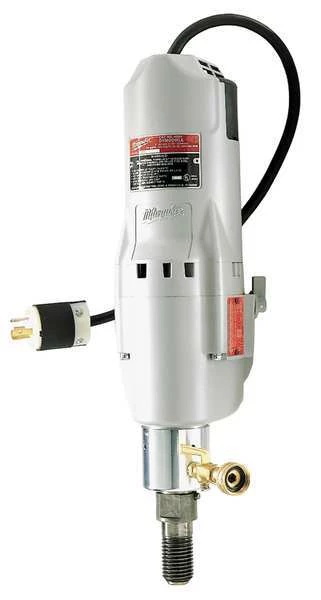

Milwaukee Diamond Coring Motor 450/900 RPM, 20 Amp w/Shear Pin
Original price was: $578.00.$92.99Current price is: $92.99.
Diamond coring motors are used with Vac-U-Rig® and Dymo-Rig diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 450 RPM or 900 RPM operating speed. The 4094 uses a shear pin to protect gears and motor against overload. Shear pins are easily replaced and extra pins are included with the unit. This unit will handle core bits from 2 in. to 10 in. in diameter.
Milwaukee #4094 Specifications
- Zoro #: G4937545
- Mfr #: 4094
- Promotion Restriction: Not eligible for promotion
- Item: Diamond Coring Rig Motor
- Motor HP: 4 4/5 hp
- Amps: 20.0 A
- No Load RPM: 450/900
- Core Bit Cap Concrete: 10 in
- Corded/Cordless: Corded
- Voltage: 120V AC
- Includes: Open End Wrench, Six Extra Shear Pins, Water Control Valve, Water Hose Adapter
- Tool Weight: 24.0 lb
- Corded/Banded: Corded
- Features: Built-in Water Swivel, Shear Pin Protection
- Horsepower: 4 4/5 hp
- Phase: Single-Phase
- Coring Capacity in Concrete: 10 in
- Speed Setting: Variable Speed
- Power Source: Corded
- Plug Type: L5-20P
- Overload Protection Type: Shear Pin
- Minimum Spindle Speed: 450 RPM
- Maximum Spindle Speed: 900 RPM
- Overload Protection Clutch: No
- Current: 20 A
- Number of Speed Settings: 2
- Nominal Voltage: 115V AC
- Country of Origin (subject to change): United States
