Milwaukee M12 FUEL Installation Drill/Driver Kit
Original price was: $252.35.$92.99Current price is: $92.99.

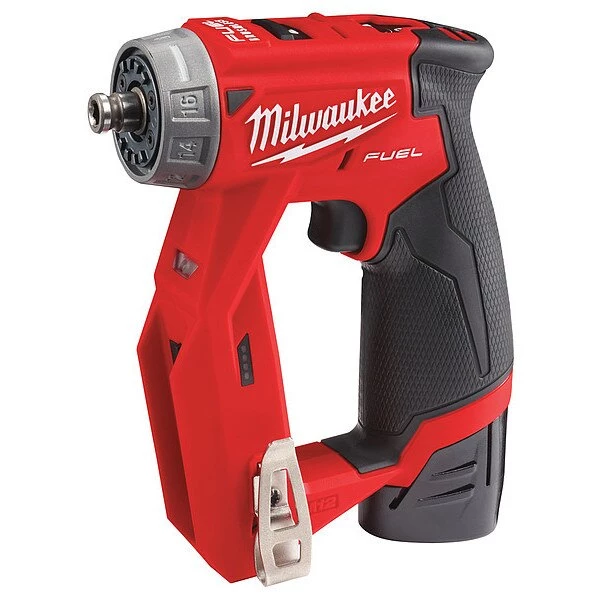

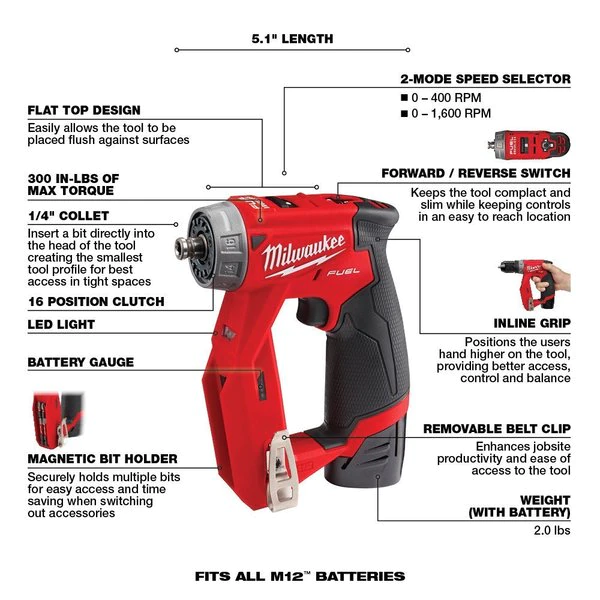

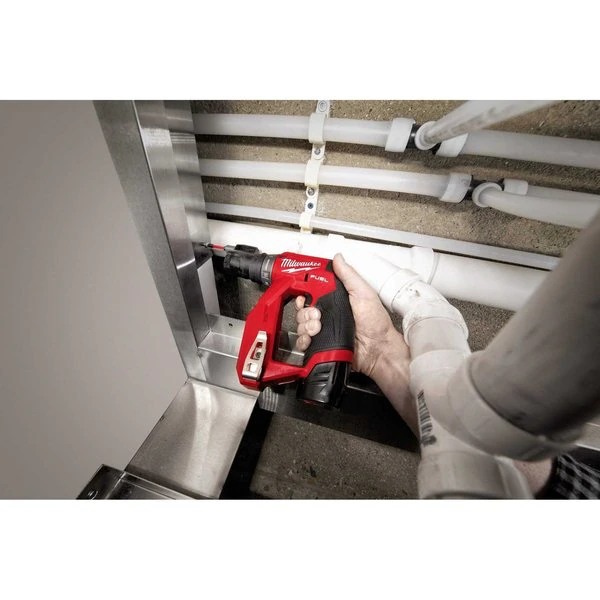

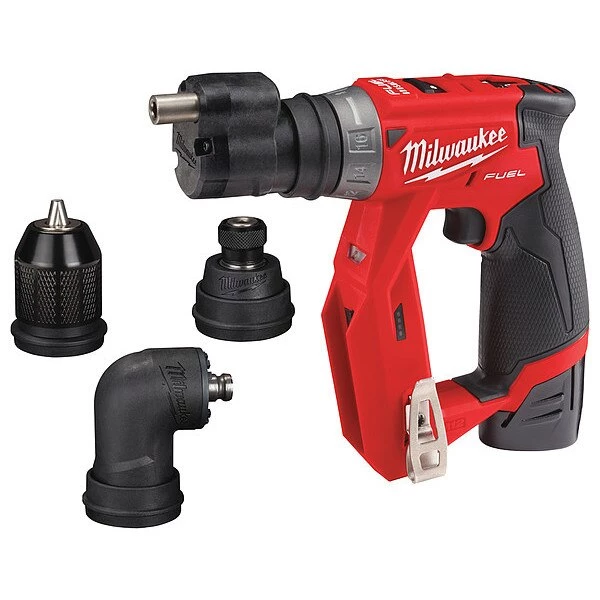

Our M12 FUELTM installation drill/driver kit features 4 dedicated solutions, delivering unrivaled access and control with up to 300 in-lbs of max torque. Four dedicated heads, including a 3/8 in. chuck, offset driver, 1/4 in. hex, and right angle, can attach in 16 different positions. This provides you with a 4-in-1 drilling and driving solution that is purposefully designed to reach uniquely challenging locations. The compact drill driver features a slim tool profile and an inline grip in the back of the tool that provides ultimate tool control and unrivaled access. The top of the tool is flat, allowing the tool to be placed flush against surfaces for additional access when needed. The front of the tool is equipped with a magnetic bit holder that securely holds multiple bits, enhancing your productivity. These unique features combine with the tool’s compact size and weight allowing you to maneuver the multi-head drill/driver for maximum versatility and best access in hard to reach places. The modular drill/driver is equipped with a POWERSTATETM brushless motor, delivering you with 1600 RPMS and 300 in./lbs of torque. This provides you with the necessary power for installation applications, especially in electrical, cabinet installation, MRO, HVAC, automotive, and remodel applications. The installation drill/driver features REDLINK PlusTM intelligence, protecting your tool from overloading or overheating. The compact cordless drill/driver is powered by our M12TM REDLITHIUMTM battery packs, delivering you with more run-time per charge and more work over the life of the pack. In addition to the 12 Volt tool and four attachments, a compartmentalized contractor bag is included to hold each individual head. This kit also includes two M12TM REDLITHIUMTM CP2.0 battery packs (48-11-2420) and an M12TM charger (48-59-2401).
Milwaukee #2505-22 Specifications
- Zoro #: G5738958
- Mfr #: 2505-22
- Promotion Restriction: Not eligible for promotion
- Voltage: 12V DC
- Number of Batteries: 2
- Cordless Tool Battery Type: Li-Ion
- Battery Capacity: (2) 2.0 Ah
- Brushless Motor: Yes
- Series: M12 FUEL
- No Load RPM: 0 to 1600
- Item: Drill Kit
- Chuck Size: 3/8 in
- Corded/Cordless: Cordless
- Charger Replacement: 2XKZ7
- Clutch Style: Mechanical
- Battery Included: 38D763
- Tool Length: 5 13/64 in
- Max. Power: Not Specified
- Included Charger: 2XKZ7
- Tool Weight: 2 lb
- Max. Torque: 300 in-lb

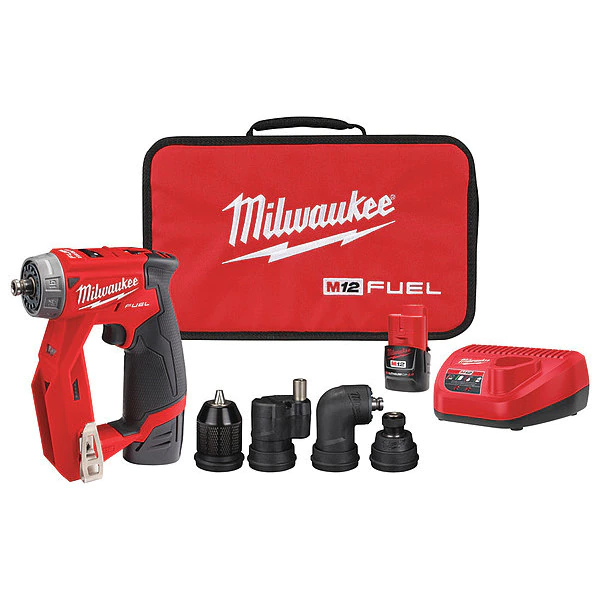

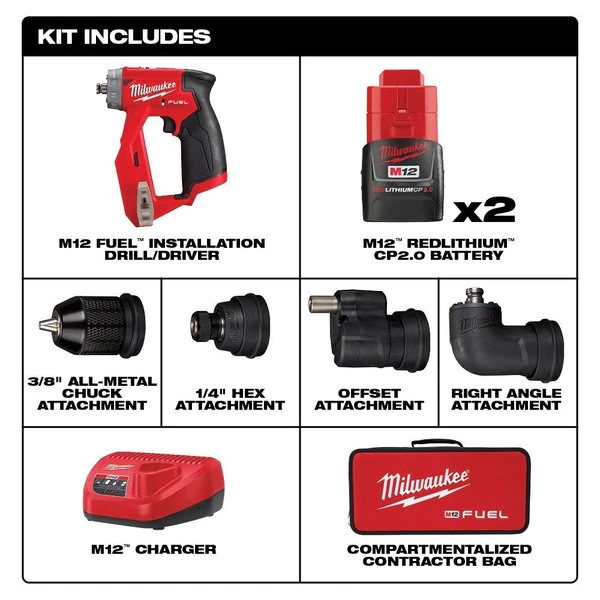

- Includes: (1) 3/8 in Metal Chuck Attachment, (1) Belt Clip, (1) Contractor Bag, (1) Offset Attachment, (1) Right Angle Attachement
- Battery Pack Replacement: 38D763
- Chuck: Keyless
- Green Environmental Attribute: Product is Rechargeable
- Handle Type: Pistol Grip
- Min. Torque: 0 in-lb
- Wireless Tool Tracking: No
- Variable Speed: Yes
- Cordless Drill Class: Interchangeable Chuck
- Battery Series: M12 REDLITHIUM
- Charger Model: Mfr. No. 48-59-1812
- Charger Included: Yes
- Reversible: Yes
- Min. Speed: 400 RPM
- Chuck Material: Metal
- Max. Speed: 1,600 RPM
- Built-In Light: Yes
- Power Source: Cordless
- Cordless Tool Kit Contents: (1) Bare Tool, (2) Batteries, (1) Charger
- Number of Clutch Settings: 16
- Throttle Type: Trigger
- Battery Model No.: Mfr. No. 48-11-2420
- Number of Batteries Included: 2
- Overall Width: 1 3/4 in
- Number of Speed Settings: 2
- Overall Height: 7 in
- Overall Length: 5 1/8 in
- Drilling Capacity in Wood: 1 in
- Drill Chuck Type: Keyless
- Drilling Capacity in Steel: 3/8 in
- Torque Range: 0 in-lb to 300 in-lb
- Battery Model Number: Mfr. No. 48-11-2420
- Minimum Torque: 0 in-lb
- Minimum Speed: 400 RPM
- Maximum Speed: 1,600 RPM
- Country of Origin (subject to change): Mexico
