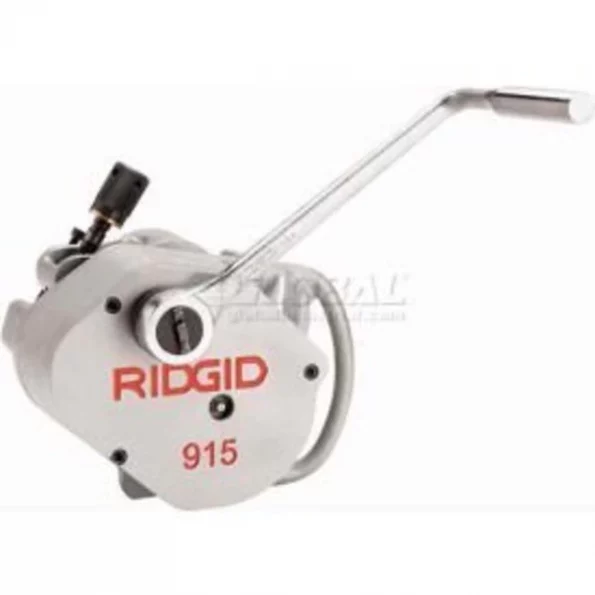

Ridge Tool Company RIDGID® 88232 Model 915 Roll Groover W/2"-6" Schedule 10 Roll Set
Original price was: $488.00.$98.99Current price is: $98.99.
RIDGID® MODEL NO. 915 ROLL GROOVER W/2"-6" SCHEDULE 10 ROLL SET RIDGID MODEL NO. 915 ROLL GROOVER W/2"-6" SCHEDULE 10 ROLL SETTHE NEW RIDGID 915 ROLL GROOVER IS A MANUAL ROLL GROOVER FOR IN-PLACE FIELD APPLICATIONS. THE 915 REQUIRES ONLY 3 1/2" OF CLEARANCE TO TRAVEL AROUND A PIPE AND A MINIMUM OF 2 3/4" OF EXPOSED PIPE FOR GROOVING. WITH THE APPROPRIATE ROLL SETS, THE 915 CAN GROOVE FROM 1 1/4" TO 12" PIPE, THE WIDEST RANGE IN ITS CLASS THE 915'S CAST-IN HANDLE ALLOWS FOR EASY TRANSPORT OR CHAINING THE GROOVER DOWN TO PREVENT THEFT. THE 915 IS A MUST FOR SERVICE WORK CREWS. FEATURES LIGHTWEIGHT DESIGN ' ONLY 23 POUNDS. EASY ROLL SET CHANGE OUT ' UP TO 12" PIPE CAPACITY IN ONE UNIT FOR SERVICE VERSATILITY. CAST-IN CARRYING HANDLE ' EASY TO TRANSPORT OR LOCK UP TO PREVENT THEFT. INCLUDED RATCHET ' 90 DEGREE BEND-IN HANDLE MAKES GROOVING EASIER. AVAILABLE CUSTOMIZED TOOL BOX ' HOLDS 915 GROOVER AND ALL AVAILABLE ROLL SETS. EASY TO USE DEPTH SETTING GAUGE ' HELPS MAKE ACCURATE GROOVES. SPECIFICATIONS CAPACITY: ' 1 1/4" – 12" SCH. 10 STEEL AND STAINLESS STEEL PIPE. ' 1 1/4" – 6" SCH. 40 STEEL PIPE, 1 1/4"-2" SCH. 40 STAINLESS STEEL PIPE.' 2"- 8" K, L, M, DWV COPPER.' 1 1/4" – 6" SCH. 40 PVC. ' 1 1/2", 2 1/2" – 3" SCH. 80 PVC. OPERATION: FEED SCREW WITH 1/2" RATCHET WRENCH (INCLUDED). WEIGHT: 23 LBS. (INCLUDING RATCHET). STANDARD EQUIPMENT 915 ROLL GROOVER WITH 2" – 6" SCH. 10 (2" – 3 1/2" SCH. 40). ROLL SET RATCHET WRENCH.
Ridge Tool Company #88232 Specifications
- Zoro #: G002663170
- Mfr #: 88232
- Country of Origin (subject to change): United States
