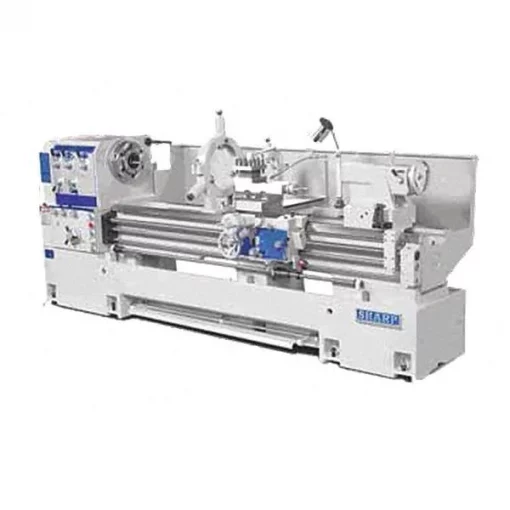

Sharp Lathe, 220/440 Volts, 7 1/2 HP, 60 Hz, 3 Phase
Original price was: $479.00.$91.99Current price is: $91.99.
Lathe, Distance Between Centers 60 in, Voltage 220/440V AC, Horsepower 7 1/2 hp, Min. Spindle Speed 20 RPM, Application Metal Turning, Overall Height 49 in, Overall Length 105 in, Overall Width 40 1/2 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT5, Spindle Nose Type D1-8 Camlock
Sharp #1860L Specifications
- Zoro #: G5061800
- Mfr #: 1860L
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 220/440V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 18-1/2
- Horsepower: 7 1/2 hp
- Longitudinal Feed Rates: 0.002 to 0.032
- Spindle Taper: MT-4
- Tailstock Taper: MT5
- Overall Height: 49 in
- Carriage Travel (In.): 60
- Cross Feed Rates: 0.001 to 0.094
- Hz: 60
- Number of Spindle Speeds: 12
- Cross Travel (In.): 9-7/8
- Features: 12 Speed Geared Head, Camlock Spindle, Digital Variable Speed-DVS, Direct Selection for Inch/Metric Threads, One Piece Cast Meehanite Bed
- Includes: (3) 10 in Jaw Chucks, 16 in Faceplate, American Tool Post, Coolant System, Follow Rest, Full Length Splash Guard, Halogen Work Light, Longitudinal Carriage Stops, Steady Rest with Bronze Tip, Tailstock, Tool Kit
- Tailstock Travel (In.): 5
- Number of Threads (In.): 36
- Gap Length (In.): 9-3/4
- Swing In Gap (In.): 27-1/4
- Thread Range (In.): 4 to 56
- Coolant Tank Capacity: 5 gal.
- Overall Length: 105 in
- Bed Width (In.): 11-3/4
- Thread Range (mm): 4 to 56
- Compound Travel (In.): 5-1/4
- Swing Over Cross Slide (In.): 11-3/4
- Overall Width: 40 1/2 in
- Spindle Bore (In.): 3-9/64
- Distance Between Centers (In.): 60
- Number of Threads (mm): 34
- Spindle Speed (RPM): 40 to 2000
- Application: Metal Turning
- Number of Metric Threads: 34
- Min. Cross Feed: 0.0010 in
- Min. Threads per Inch: 4
- Max. Spindle Speed: 2,000 RPM
- Number of Inch Threads: 36
- Min. Metric Thread: 0.5 mm (Module), 4 mm (D.P)
- Min. Spindle Speed: 20 RPM
- Swing Over Bed: 18 1/2 in
- Max. Threads per Inch: 56
- Spindle Nose Type: D1-8 Camlock
- Gap Length: 9 3/8 in
- Spindle Bore: 3 9/64 in
- Max. Cross Feed: 0.0094 in
- Max. Metric Thread: 56 mm (D.P), 7 mm (Module)
- Bed Width: 11 3/4 in
- Distance Between Centers: 60 in
- Swing In Gap: 27 1/4 in
- Swing Over Cross Slide: 11 3/4 in
- Country of Origin (subject to change): Taiwan, Province of China
