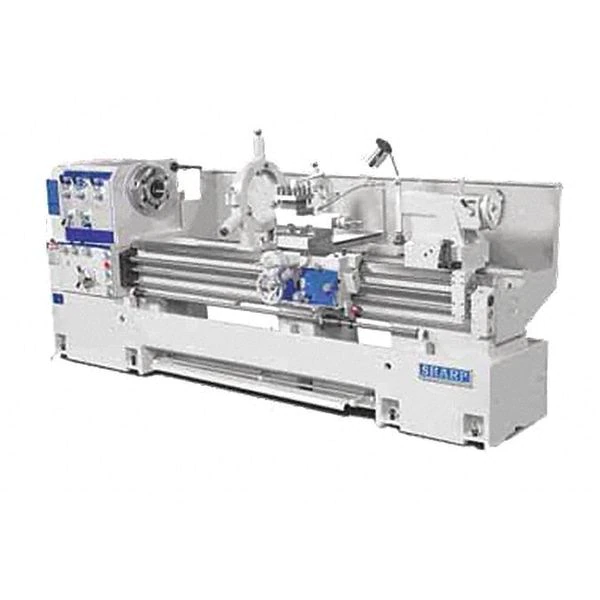

Sharp Lathe, 220/440 Volts, 7 1/2 HP, 60 Hz, 3 Phase
Original price was: $468.00.$95.99Current price is: $95.99.
Lathe, Distance Between Centers 80 in, Voltage 220/440, Horsepower 7 1/2, Min. Spindle Speed 20 RPM, Application Metal Turning, Overall Height 49 in, Overall Length 126 in, Overall Width 40 1/2 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT7, Spindle Nose Type D1-8 Camlock
Sharp #1880L Specifications
- Zoro #: G5061828
- Mfr #: 1880L
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 220/440V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 18-1/2
- Horsepower: 7 1/2 hp
- Features: 12 Speed Geared Head, Camlock Spindle, Digital Variable Speed-DVS, Direct Selection for Inch/Metric Threads, One Piece Cast Meehanite Bed
- Cross Feed Rates: 0.001 to 0.094
- Cross Travel (In.): 9-7/8
- Tailstock Taper: MT7
- Gap Length (In.): 11-3/4
- Thread Range (mm): 4 to 56
- Number of Spindle Speeds: 12
- Swing Over Cross Slide (In.): 11-3/4
- Tailstock Travel (In.): 5
- Number of Threads (mm): 34
- Longitudinal Feed Rates: 0.002 to 0.032
- Swing In Gap (In.): 27-1/4
- Carriage Travel (In.): 80
- Spindle Bore (In.): 3-9/64
- Includes: (3) 10 in Jaw Chucks, 16 in Faceplate, American Tool Post, Coolant System, Follow Rest, Full Length Splash Guard, Halogen Work Light, Longitudinal Carriage Stops, Steady Rest with Bronze Tip, Tailstock, Tool Kit
- Number of Threads (In.): 36
- Compound Travel (In.): 5-1/4
- Overall Width: 40 1/2 in
- Overall Height: 49 in
- Spindle Speed (RPM): 40 to 2000
- Overall Length: 126 in
- Hz: 60
- Bed Width (In.): 11-3/4
- Spindle Taper: MT-4
- Thread Range (In.): 4 to 56
- Coolant Tank Capacity: 5 gal.
- Distance Between Centers (In.): 80
- Number of Inch Threads: 36
- Distance Between Centers: 80 in
- Min. Spindle Speed: 20 RPM
- Max. Spindle Speed: 2,000 RPM
- Min. Threads per Inch: 4
- Min. Cross Feed: 0.0010 in
- Swing Over Cross Slide: 11 3/4 in
- Application: Metal Turning
- Bed Width: 11 3/4 in
- Max. Cross Feed: 0.0094 in
- Swing Over Bed: 18 1/2 in
- Max. Metric Thread: 56 mm (D.P), 7 mm (Module)
- Number of Metric Threads: 34
- Spindle Nose Type: D1-8 Camlock
- Min. Metric Thread: 0.5 mm (Module), 4 mm (D.P)
- Max. Threads per Inch: 56
- Gap Length: 11 3/4 in
- Spindle Bore: 3 9/64 in
- Swing In Gap: 27 1/4 in
- Country of Origin (subject to change): Taiwan, Province of China
