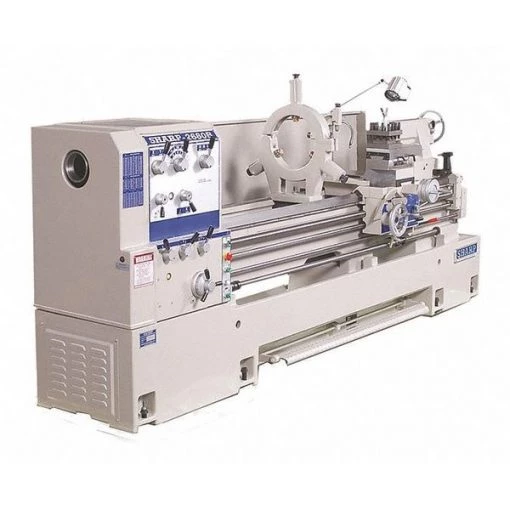

Sharp Lathe, 220 Volts, 15 HP, 60 Hz, 3 Phase
Original price was: $535.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 100 in, Voltage 220, Horsepower 15, Min. Spindle Speed 10 RPM, Application Metal Turning, Overall Height 52 in, Overall Length 157 in, Overall Width 40 1/2 in, Max. Spindle Speed 1,000 RPM, Tailstock Taper MT16, Spindle Nose Type D1-11 Camlock
Sharp #26100B Specifications
- Zoro #: G5061852
- Mfr #: 26100B
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 15
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 26
- Horsepower: 15 hp
- Features: Camlock Spindle, Direct Selection for Inch/Metric Threads, One Piece Cast Meehanite Bed, Quick Change Gearbox
- Number of Threads (In.): 44
- Cross Travel (In.): 14-3/4
- Swing Over Cross Slide (In.): 17-1/4
- Cross Feed Rates: 0.001 to 0.094
- Thread Range (In.): 2 to 56
- Carriage Travel (In.): 100
- Longitudinal Feed Rates: 0.002 to 0.032
- Overall Height: 52 in
- Bed Width (In.): 15-3/4
- Includes: (4) Jaw 16 in Chucks, 20 in Faceplate, 4-Way Carriage Stop, 4-Way Tool Post, Coolant System, Follow Rest, Halogen Light, Rapid Transverse on Longitudinal, Steady Rest, Tailstock, Tool Kit
- Compound Travel (In.): 7-3/4
- Overall Width: 40 1/2 in
- Coolant Tank Capacity: 10 gal.
- Spindle Taper: MT-5
- Overall Length: 157 in
- Number of Threads (mm): 40
- Gap Length (In.): 8
- Spindle Speed (RPM): 10 to 1000
- Swing In Gap (In.): 35
- Spindle Bore (In.): 4-47/64
- Number of Spindle Speeds: 12
- Tailstock Travel (In.): 6-1/2
- Tailstock Taper: MT16
- Thread Range (mm): 2 to 56
- Hz: 60
- Distance Between Centers (In.): 100
- Max. Cross Feed: 0.0094 in
- Swing In Gap: 35 in
- Spindle Bore: 4 47/64 in
- Number of Inch Threads: 44
- Min. Threads per Inch: 2
- Swing Over Cross Slide: 17 1/4 in
- Spindle Nose Type: D1-11 Camlock
- Max. Spindle Speed: 1,000 RPM
- Min. Metric Thread: 0.5 mm (Module), 4 mm (D.P)
- Gap Length: 16 in
- Min. Spindle Speed: 10 RPM
- Min. Cross Feed: 0.0010 in
- Distance Between Centers: 100 in
- Swing Over Bed: 26 in
- Max. Metric Thread: 14 mm (Module), 56 mm (D.P)
- Application: Metal Turning
- Bed Width: 15 3/4 in
- Max. Threads per Inch: 56
- Number of Metric Threads: 40
- Country of Origin (subject to change): Taiwan, Province of China
