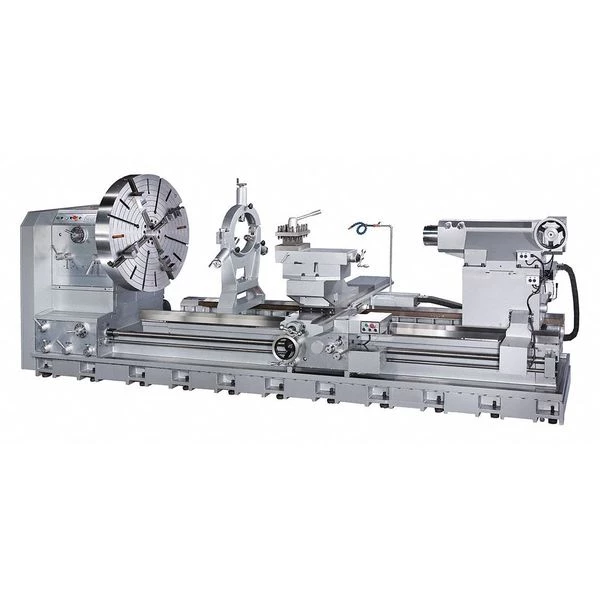

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $524.00.$97.99Current price is: $97.99.
Lathe, Distance Between Centers 80 in, Voltage 220V AC, Horsepower 30 hp, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 80 45/64 in, Overall Length 186 39/64 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT31
Sharp #8080-32M Specifications
- Zoro #: G7686749
- Mfr #: 8080-32M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 80-1/4
- Horsepower: 30 hp
- Overall Width: 85 13/32 in
- Swing Over Cross Slide (In.): 64-3/16
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Bed Width (In.): 7-1/4
- Thread Range (mm): 2 to 56
- Cross Travel (In.): 27-9/16
- Carriage Travel (In.): 80
- Spindle Bore (In.): 1
- Gap Length (In.): 80
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Hz: 60
- Tailstock Taper: MT31
- Swing In Gap (In.): 91-1/4
- Coolant Tank Capacity: 10 gal.
- Number of Threads (In.): 61
- Overall Length: 186 39/64 in
- Compound Travel (In.): 15-3/4
- Distance Between Centers (In.): 80
- Number of Threads (mm): 60
- Longitudinal Feed Rates: 0.0024 to 0.28
- Tailstock Travel (In.): 3-15/16
- Spindle Speed (RPM): 4 to 420
- Overall Height: 80 45/64 in
- Number of Spindle Speeds: 16
- Thread Range (In.): 1/4 to 30
- Cross Feed Rates: 0.0012 to 0.14
- Spindle Taper: MT-6
- Min. Spindle Speed: 4 RPM
- Min. Cross Feed: 0.0012 in
- Max. Cross Feed: 0.1400 in
- Number of Inch Threads: 61
- Min. Metric Thread: 2 mm
- Swing Over Bed: 80 1/4 in
- Gap Length: 80 in
- Number of Metric Threads: 60
- Min. Threads per Inch: 1/4
- Spindle Bore: 6 in
- Max. Threads per Inch: 30
- Swing In Gap: 91 1/4 in
- Max. Spindle Speed: 420 RPM
- Application: Metal Turning
- Distance Between Centers: 80 in
- Max. Metric Thread: 56 mm
- Bed Width: 32 in
- Swing Over Cross Slide: 64 3/16 in
- Country of Origin (subject to change): Taiwan, Province of China
