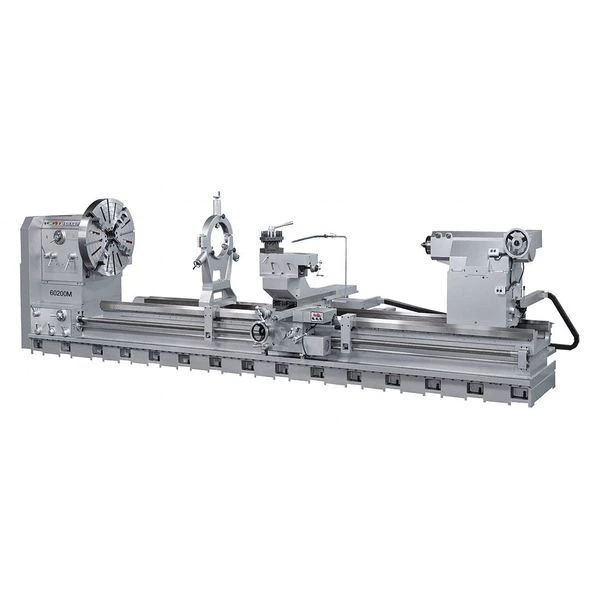

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $408.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 315 in, Voltage 220V AC, Horsepower 30 hp, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 76 in, Overall Length 420 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT30
Sharp #70315-32M Specifications
- Zoro #: G7686791
- Mfr #: 70315-32M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 70-7/8
- Horsepower: 30 hp
- Number of Threads (mm): 60
- Spindle Taper: MT-6
- Number of Threads (In.): 61
- Overall Length: 420 in
- Tailstock Taper: MT30
- Cross Feed Rates: 0.0012 to 0.14
- Hz: 60
- Carriage Travel (In.): 70
- Thread Range (mm): 2 to 56
- Number of Spindle Speeds: 16
- Coolant Tank Capacity: 10 gal.
- Cross Travel (In.): 27-9/16
- Spindle Bore (In.): 1
- Thread Range (In.): 1/4 to 30
- Swing In Gap (In.): 81-7/8
- Tailstock Travel (In.): 3-15/16
- Spindle Speed (RPM): 4 to 420
- Compound Travel (In.): 15-3/4
- Swing Over Cross Slide (In.): 54-11/16
- Overall Height: 76 in
- Distance Between Centers (In.): 315
- Overall Width: 85 13/32 in
- Bed Width (In.): 7-1/4
- Gap Length (In.): 70
- Longitudinal Feed Rates: 0.0024 to 0.28
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Gap Length: 70 in
- Min. Metric Thread: 2 mm
- Swing In Gap: 81 7/8 in
- Number of Inch Threads: 61
- Min. Threads per Inch: 1/4
- Swing Over Cross Slide: 54 11/16 in
- Application: Metal Turning
- Spindle Bore: 6 in
- Max. Cross Feed: 0.1400 in
- Min. Spindle Speed: 4 RPM
- Max. Spindle Speed: 420 RPM
- Distance Between Centers: 315 in
- Min. Cross Feed: 0.0012 in
- Swing Over Bed: 70 7/8 in
- Number of Metric Threads: 60
- Bed Width: 32 in
- Max. Metric Thread: 56 mm
- Max. Threads per Inch: 30
- Country of Origin (subject to change): Taiwan, Province of China
