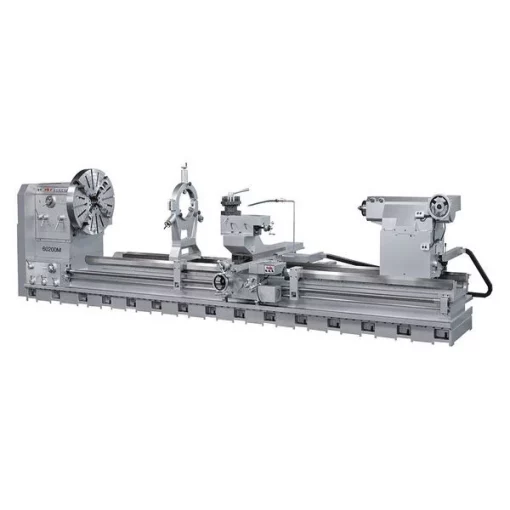

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $565.00.$96.99Current price is: $96.99.
Lathe, Distance Between Centers 240 in, Voltage 220, Horsepower 30, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 60 39/64 in, Overall Length 344 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT24
Sharp #40240-32M Specifications
- Zoro #: G7686660
- Mfr #: 40240-32M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 40
- Horsepower: 30 hp
- Tailstock Taper: MT24
- Cross Feed Rates: 0.0012 to 0.14
- Cross Travel (In.): 27-9/16
- Hz: 60
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Overall Height: 60 39/64 in
- Gap Length (In.): 23-7/16
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Spindle Taper: MT-6
- Coolant Tank Capacity: 10 gal.
- Spindle Speed (RPM): 4 to 420
- Number of Spindle Speeds: 16
- Thread Range (In.): 1/4 to 30
- Swing In Gap (In.): 51
- Overall Length: 344 in
- Swing Over Cross Slide (In.): 6-1/2
- Bed Width (In.): 7-1/4
- Overall Width: 85 13/32 in
- Tailstock Travel (In.): 3-15/16
- Number of Threads (mm): 60
- Thread Range (mm): 2 to 56
- Distance Between Centers (In.): 240
- Spindle Bore (In.): 1
- Longitudinal Feed Rates: 0.0024 to 0.28
- Compound Travel (In.): 15-3/4
- Carriage Travel (In.): 240
- Number of Threads (In.): 61
- Max. Threads per Inch: 30
- Swing In Gap: 51 in
- Gap Length: 23 7/16 in
- Swing Over Bed: 40 in
- Spindle Bore: 6 in
- Min. Cross Feed: 0.0012 in
- Min. Threads per Inch: 1/4
- Max. Cross Feed: 0.1400 in
- Max. Spindle Speed: 420 RPM
- Max. Metric Thread: 56 mm
- Min. Metric Thread: 2 mm
- Min. Spindle Speed: 4 RPM
- Swing Over Cross Slide: 24 in
- Number of Inch Threads: 61
- Application: Metal Turning
- Distance Between Centers: 240 in
- Number of Metric Threads: 60
- Bed Width: 32 in
- Country of Origin (subject to change): Taiwan, Province of China
