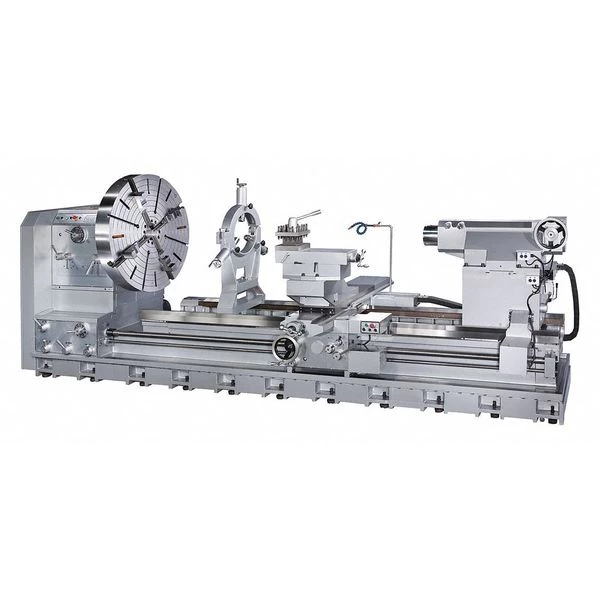

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $506.00.$97.99Current price is: $97.99.
Lathe, Distance Between Centers 60 in, Voltage 220, Horsepower 30, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 58 45/64 in, Overall Length 141-45/64 in, Overall Width 80 45/64 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT23
Sharp #4060M Specifications
- Zoro #: G7686539
- Mfr #: 4060M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 40
- Horsepower: 30 hp
- Overall Width: 80 45/64 in
- Number of Threads (mm): 60
- Cross Travel (In.): 14-39/64
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Tailstock Travel (In.): 3-15/16
- Cross Feed Rates: 0.0012 to 0.14
- Carriage Travel (In.): 60
- Thread Range (In.): 1/4 to 30
- Distance Between Centers (In.): 60
- Tailstock Taper: MT23
- Overall Length: 141 45/64 in
- Hz: 60
- Compound Travel (In.): 14-9/16
- Number of Threads (In.): 61
- Gap Length (In.): 57
- Longitudinal Feed Rates: 0.0024 to 0.28
- Spindle Speed (RPM): 4 to 420
- Thread Range (mm): 2 to 56
- Bed Width (In.): 24
- Swing In Gap (In.): 57
- Spindle Taper: MT-6
- Coolant Tank Capacity: 10 gal.
- Overall Height: 58 45/64 in
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Number of Spindle Speeds: 16
- Spindle Bore (In.): 1
- Swing Over Cross Slide (In.): 27-7/8
- Spindle Bore: 6 in
- Number of Metric Threads: 60
- Min. Threads per Inch: 1/4
- Max. Cross Feed: 0.1400 in
- Min. Spindle Speed: 4 RPM
- Swing Over Bed: 40 in
- Swing Over Cross Slide: 27 7/8 in
- Max. Metric Thread: 120 mm
- Max. Threads per Inch: 30
- Bed Width: 24 in
- Application: Metal Turning
- Distance Between Centers: 60 in
- Gap Length: 57 in
- Number of Inch Threads: 61
- Min. Metric Thread: 1 mm
- Max. Spindle Speed: 420 RPM
- Swing In Gap: 57 in
- Min. Cross Feed: 0.0012 in
- Country of Origin (subject to change): Taiwan, Province of China
