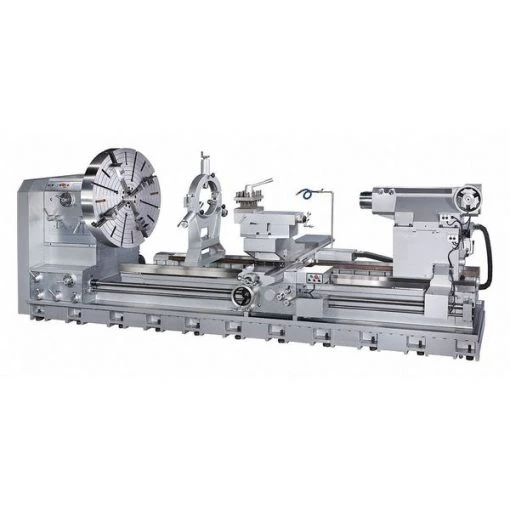

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $415.00.$96.99Current price is: $96.99.
Lathe, Distance Between Centers 80 in, Voltage 220, Horsepower 30, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 76 in, Overall Length 183 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT29
Sharp #7080M-32 Specifications
- Zoro #: G7686773
- Mfr #: 7080M-32
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 70-7/8
- Horsepower: 30 hp
- Number of Spindle Speeds: 16
- Cross Travel (In.): 27-9/16
- Spindle Taper: MT-6
- Hz: 60
- Number of Threads (mm): 60
- Tailstock Taper: MT29
- Swing In Gap (In.): 81-7/8
- Overall Length: 183 in
- Overall Height: 76 in
- Thread Range (In.): 1/4 to 30
- Thread Range (mm): 2 to 56
- Number of Threads (In.): 61
- Swing Over Cross Slide (In.): 54-11/16
- Spindle Bore (In.): 1
- Gap Length (In.): 70
- Bed Width (In.): 7-1/4
- Longitudinal Feed Rates: 0.0024 to 0.28
- Carriage Travel (In.): 70
- Tailstock Travel (In.): 20-7/8
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Cross Feed Rates: 0.0012 to 0.14
- Spindle Speed (RPM): 4 to 420
- Compound Travel (In.): 15-3/4
- Overall Width: 85 13/32 in
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Coolant Tank Capacity: 10 gal.
- Distance Between Centers (In.): 80
- Min. Cross Feed: 0.0012 in
- Max. Threads per Inch: 30
- Min. Threads per Inch: 1/4
- Spindle Bore: 6 in
- Swing Over Bed: 70 7/8 in
- Max. Metric Thread: 120 mm
- Bed Width: 32 in
- Distance Between Centers: 80 in
- Gap Length: 70 in
- Max. Spindle Speed: 420 RPM
- Application: Metal Turning
- Number of Inch Threads: 61
- Min. Metric Thread: 1 mm
- Swing Over Cross Slide: 54 11/16 in
- Max. Cross Feed: 0.1400 in
- Number of Metric Threads: 60
- Min. Spindle Speed: 4 RPM
- Swing In Gap: 81 7/8 in
- Country of Origin (subject to change): Taiwan, Province of China
