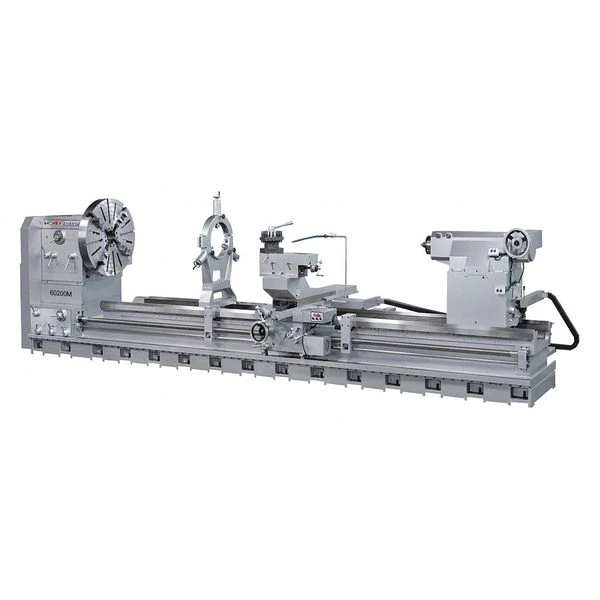

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $471.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 240 in, Voltage 220V AC, Horsepower 30 hp, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 70 45/64 in, Overall Length 341 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT28
Sharp #60240-32M Specifications
- Zoro #: G7686721
- Mfr #: 60240-32M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 60-3/16
- Horsepower: 30 hp
- Overall Width: 85 13/32 in
- Bed Width (In.): 7-1/4
- Coolant Tank Capacity: 10 gal.
- Spindle Speed (RPM): 4 to 420
- Tailstock Taper: MT28
- Thread Range (mm): 2 to 56
- Thread Range (In.): 1/4 to 30
- Gap Length (In.): 70
- Overall Length: 341 in
- Tailstock Travel (In.): 11-13/16
- Longitudinal Feed Rates: 0.0024 to 0.28
- Compound Travel (In.): 15-3/4
- Hz: 60
- Spindle Bore (In.): 1
- Carriage Travel (In.): 240
- Number of Threads (In.): 61
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Number of Spindle Speeds: 16
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Cross Travel (In.): 23-39/64
- Cross Feed Rates: 0.0012 to 0.14
- Swing Over Cross Slide (In.): 44-7/8
- Spindle Taper: MT-6
- Distance Between Centers (In.): 240
- Number of Threads (mm): 60
- Overall Height: 70 45/64 in
- Swing In Gap (In.): 71-1/4
- Max. Threads per Inch: 30
- Max. Spindle Speed: 420 RPM
- Min. Spindle Speed: 4 RPM
- Swing Over Cross Slide: 44 7/8 in
- Spindle Bore: 6 in
- Min. Threads per Inch: 1/4
- Number of Inch Threads: 61
- Bed Width: 32 in
- Min. Metric Thread: 2 mm
- Application: Metal Turning
- Max. Metric Thread: 56 mm
- Distance Between Centers: 240 in
- Max. Cross Feed: 0.1400 in
- Min. Cross Feed: 0.0012 in
- Swing Over Bed: 60 3/16 in
- Number of Metric Threads: 60
- Swing In Gap: 71 1/4 in
- Gap Length: 70 in
- Country of Origin (subject to change): Taiwan, Province of China
