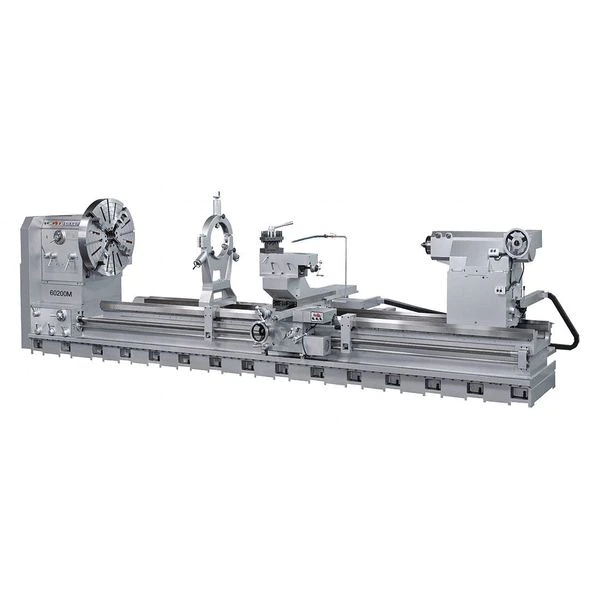

Sharp Lathe, 220 Volts, 30 HP, 60 Hz, 3 Phase
Original price was: $511.00.$91.99Current price is: $91.99.
Lathe, Distance Between Centers 240 in, Voltage 220V AC, Horsepower 30 hp, Min. Spindle Speed 4 RPM, Application Metal Turning, Overall Height 65 45/64 in, Overall Length 344 in, Overall Width 85 13/32 in, Max. Spindle Speed 420 RPM, Tailstock Taper MT26
Sharp #50240-32M Specifications
- Zoro #: G7686861
- Mfr #: 50240-32M
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 30
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 50-3/8
- Horsepower: 30 hp
- Cross Feed Rates: 0.0012 to 0.14
- Swing Over Cross Slide (In.): 34-3/16
- Spindle Taper: MT-6
- Carriage Travel (In.): 240
- Number of Spindle Speeds: 16
- Tailstock Travel (In.): 3-15/16
- Swing In Gap (In.): 61-3/8
- Gap Length (In.): 67
- Coolant Tank Capacity: 10 gal.
- Thread Range (mm): 2 to 56
- Overall Length: 344 in
- Number of Threads (In.): 61
- Bed Width (In.): 7-1/4
- Spindle Bore (In.): 1
- Hz: 60
- Tailstock Taper: MT26
- Distance Between Centers (In.): 240
- Features: Alloy Steel Gears In Headstock, Electro-Magnetic Spindle Brake, Extra Bedways Support At Front of Machine, Massive One Piece Casting Machine Base, Turcite Coating On Longitudinal and Cross Slide Areas, Two Stage Spindle Start Up, Universal Gearbox
- Overall Height: 65 45/64 in
- Longitudinal Feed Rates: 0.0024 to 0.28
- Includes: (3) Jaw Chucks, Coolant System, Dead Centers and Sleeves, Electric Power Tailstock on Larger Sizes, Longitudinal Stops, Rear Spindle Chuck, Steady Rest, Toolbox with Tools
- Overall Width: 85 13/32 in
- Compound Travel (In.): 15-3/4
- Thread Range (In.): 1/4 to 30
- Number of Threads (mm): 60
- Spindle Speed (RPM): 4 to 420
- Cross Travel (In.): 23-39/64
- Min. Spindle Speed: 4 RPM
- Max. Cross Feed: 0.1400 in
- Application: Metal Turning
- Swing In Gap: 61 3/8 in
- Gap Length: 67 in
- Swing Over Cross Slide: 34 3/16 in
- Number of Inch Threads: 61
- Max. Threads per Inch: 30
- Number of Metric Threads: 60
- Distance Between Centers: 240 in
- Max. Spindle Speed: 420 RPM
- Max. Metric Thread: 56 mm
- Swing Over Bed: 50 3/8 in
- Min. Cross Feed: 0.0012 in
- Bed Width: 32 in
- Spindle Bore: 6 in
- Min. Threads per Inch: 1/4
- Min. Metric Thread: 2 mm
- Country of Origin (subject to change): Taiwan, Province of China
