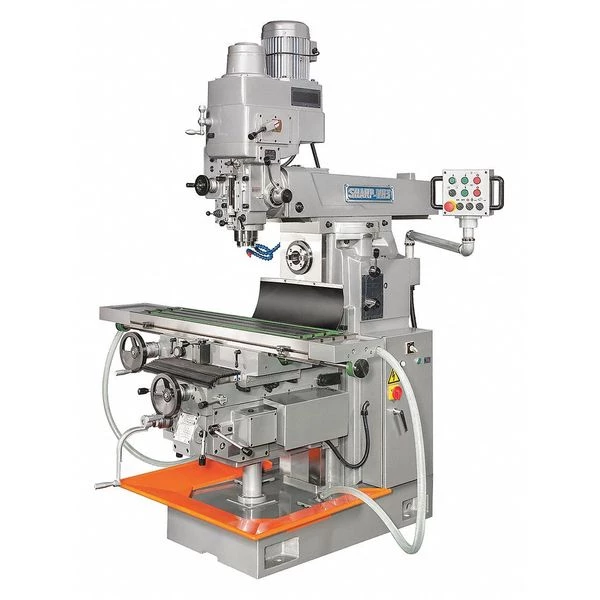

Sharp Mill/Drill Machine, 10" Swing, 5, 7-1/2HP
$534.00 Original price was: $534.00.$92.99Current price is: $92.99.
Mill Drill Machine, Phase 3, Swing 10 in

Sharp Mill/Drill Machine, 10" Swing, 5, 7-1/2HP
$534.00Original price was: $534.00.$92.99Current price is: $92.99.Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.
Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question

Sharp Mill/Drill Machine, 10" Swing, 5, 7-1/2HP
$534.00Original price was: $534.00.$92.99Current price is: $92.99.Ask a Question
Sharp #VH-3 Specifications
- Zoro #: G5091952
- Mfr #: VH-3
- Swing: 10 in
- Voltage: 220V
- RPM: 120 to 3600
- Item: Mill Drill Machine
- Drilling Capacity Steel: 3/4 in
- Spindle Speed: 120 to 3600 rpm
- Face Milling Capacity: 4 in
- Lathe Capacity: 10 in to 20 in
- Motor HP: 5, 7-1/2
- Phase: 3
- Longitudinal Travel: 37 5/16 in
- Cross Travel: 14 13/16 in
- Chuck Size: Not Included
- Amps: 26.0/13.0
- End Milling Capacity: 3/4 in
- Graduations: 0.0010 in
- Spindle Taper: NT 40
- Head: Gear Drive
- T-Slots: 5/8″
- Spindle: NT40
- Includes: Tool Kit
- Spindle to Table: 5 5/16 in to 23 in
- Table Surface Height: 37 in
- Column Dia.: 20 in
- Table Work Surface: 11-51/64 in x 51-19/64 in
- Features: Super Heavy Duty Constructions, NST #40 Vertical Spindle, NST #50 Horizontal Spindle with 12 Speeds, Vertical Head Has Lever Control For/Rev for Tapping, Separate Lever Control for Two Direction Boring, Massive Hardened and Ground Boxways Throughout, (3) Axis Simultaneous Power Feeds with Rapid Traverse
- Corded/Cordless: Corded
- Hz: 60
- Motor Type: Induction
- Operation: Manual
- Spindle Travel: 18 in
- Speed: 120 to 3600 rpm
- T-Slot Width: 5/8 in
- Motor Horsepower: 5, 7 1/2
- Frequency: 60Hz
- Power Source: Corded
- Country of Origin (subject to change): Taiwan, Province of China
