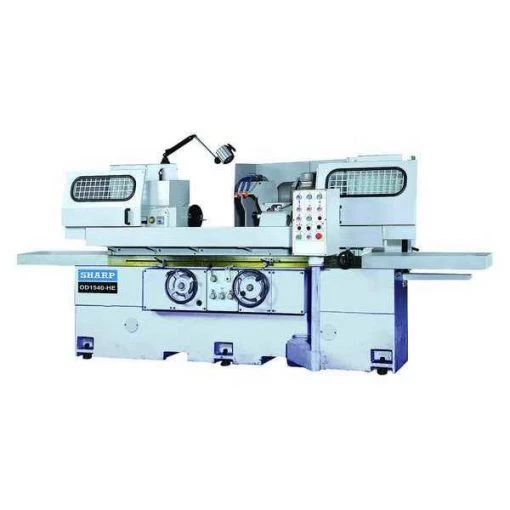

Sharp OD Grinder, 60 Hz, Machine 206" W
Original price was: $589.00.$94.99Current price is: $94.99.
OD Grinder, Voltage 220 V, Phase 3, Horsepower 7 1/2, Spindle Speed 10,000 RPM, Swing 15 in
... people are viewing this right now
Sharp #OD-1380-HE Specifications
- Zoro #: G7686572
- Mfr #: OD-1380-HE
- Item: OD Grinder
- Phase: 3
- Voltage: 220 V
- Distance Between Centers: 27 1/2 in
- Features: Grinds Inside Diameter 0.79 in to 1.97 in and Grinding Length of 2.17 in with Optional Swing Down ID Attachment, Hydraulic Automatic Table Feed, Manual Operated Wheelhead Infeed, Wheel Head Swivels 30 Degrees Right and Left for Shoulder Grinding, Workhead Can Swivel 90 Degrees CCW to 90 Degrees CW, Workhead Swivels 45 Degrees Right and Left
- Spindle RPM: 10,000
- Machine Weight: 4,500 lb
- Infeed Range: 0 in to 10 in
- Machine Width: 206″
- Includes: (2) Carbide Tip Centers MT4, 5 in Wheel Flange, Balancing Arbor, Coolant Tank, Diamond Dresser and Stand, Grinding Wheel, Infinite Variable Work Head MT4, Manual Tailstock MT4, Tool Box, Wheel Extractor, Work Light
- Hz: 60
- Swing: 15 in
- Max. Load Between Centers: 180 lb
- Machine Height: 80″
- Max. Grinding Dia.: 10″
- Machine Depth: 89″
- Coolant Tank Capacity: 36.8 gal
- Overall Width: 206 in
- Overall Height: 80 in
- Horsepower: 7 1/2
- Grinding Applications: Cylindrical, Shoulder, Taper, Workpiece Inside Diameter
- Spindle Speed: 10,000 RPM
- Overall Depth: 89 in
- Max. Workpiece Outside Dia.: 12 in
- Max. Workpiece Length: 80 in
- Control System: Electronic Control Workhead Swivel
- Frequency: 60Hz
- Country of Origin (subject to change): Taiwan, Province of China
