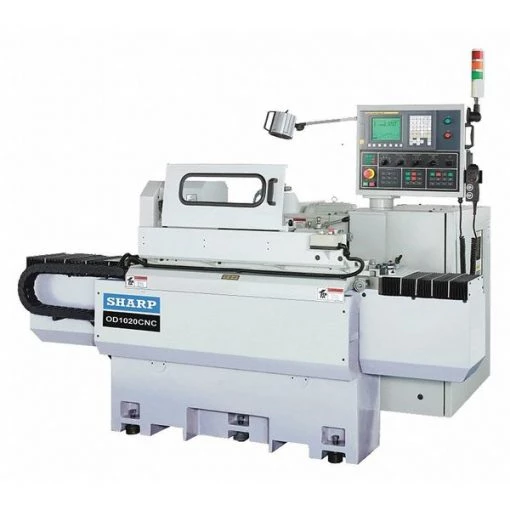

Sharp OD Grinder, 60 Hz, Machine 87" W
Original price was: $473.00.$92.99Current price is: $92.99.
OD Grinder, Voltage 220 V, Phase 3, Horsepower 3, Spindle Speed 10,000 RPM, Swing 10 in
... people are viewing this right now
Sharp #OD-820-SE Specifications
- Zoro #: G5061922
- Mfr #: OD-820-SE
- Item: OD Grinder
- Phase: 3
- Voltage: 220 V
- Max. Load Between Centers: 180 lb
- Swing: 10 in
- Machine Depth: 54″
- Max. Grinding Dia.: 10″
- Spindle RPM: 10,000
- Hz: 60
- Includes: (2) Carbide Tip Centers MT3, 5 in Wheel Flange, Auto Lube System, Balancing Arbor, Coolant System, Diamond Dresser with Holder, Grinding Wheel with Flange, Halogen Work Light, Manual Tailstock MT3, Tool Box, Work Head MT3
- Machine Height: 74″
- Infeed Range: 0 in to 10 in
- Machine Weight: 4,500 lb
- Distance Between Centers: 27 1/2 in
- Machine Width: 87″
- Features: Hydraulic Automatic Table Feed, Optional Internal Grinding Attachment, Servo NC Infeed Wheel Head, Variable Speed Drive on Wheel Head, Work Head and Spindle
- Coolant Tank Capacity: 21 gal
- Overall Width: 87 in
- Overall Height: 74 in
- Grinding Applications: Cylindrical, Taper, Workpiece Inside Diameter
- Frequency: 60Hz
- Overall Depth: 54 in
- Spindle Speed: 10,000 RPM
- Horsepower: 3
- Max. Workpiece Outside Dia.: 8 in
- Max. Workpiece Length: 20 in
- Country of Origin (subject to change): Taiwan, Province of China
