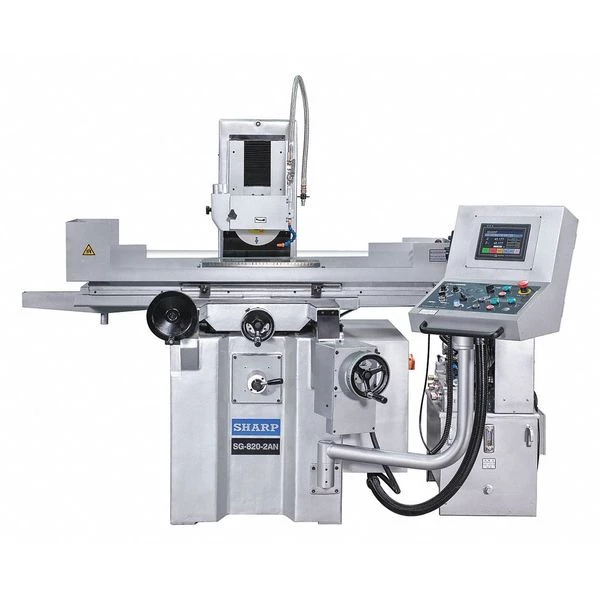

Sharp Surface Grinder, Automatic, 220V
Original price was: $568.00.$95.99Current price is: $95.99.
Surface Grinder, Table Dimensions 8 in x 20 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 8 in, Max. Grinding Width 6 3/4 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.1000 in, Crossfeed Handwheel Graduation 0.0008 in, Features Automatic Cross Feed, Hydraulic System for Table Travel
... people are viewing this right now
Sharp #SG-820-2AN Specifications
- Zoro #: G5061977
- Mfr #: SG-820-2AN
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 1-1/2
- Downfeed Handwheel per Revolution: 0.030″
- Operation Type: Automatic
- Features: Automatic Cross Feed, Hydraulic System for Table Travel
- Longitudinal Table Speed: 196 to 984 in/min
- Overall Width: 8 45/64 in
- Magnetic Chuck Size: 6 in x 12 in
- Hz: 60
- Includes: Grinding Wheel, Electromagnetic Chuck with Control, Auto Lube System, Coolant System with Paper Filter, Splash Guard, Wheel Adapter/Flange, Work Light, Wheel Balancing Arbor, Diamond Dresser, Progra mmable Microprocessor
- Max. Grinding Length: 12 5/8 in
- Coolant Feed: Non-Coolant Fed
- Crossfeed Handwheel per Revolution: 0.100″
- Wheel Bore: 1-1/8″
- Downfeed Handwheel per Graduation: 0.0002″
- Crossfeed Table Travel: 6-3/4″
- Wheel Width: (2) 2-1/2″, (4) 2″
- Max. Grinding Width: 6 3/4 in
- Grinding Wheel Dia.: 8 in
- Spindle to Table: 15-45/64″
- Overall Length: 21 45/64 in
- Spindle RPM: 10,000
- Longitudinal Table Travel: 12-5/8″
- Machine Weight: 2,600 lb
- Grinding Wheel Width: 2 in, 2 1/2 in
- Spindle Speed: 10,000 RPM
- Cross Handwheel Feed per Revolution: 0.1000 in
- Motor Type: Hydraulic Spindle Motor
- Vertical Handwheel Graduation: 0.0002 in
- Hand Feed: 0.2 in/rev
- Spindle Center to Table Distance: 15 45/64 in
- Grinding Wheel Bore: 1 1/8 in
- Hydraulic Feed: 3.3 to 82 fpm
- Frequency: 60Hz
- Intermittent Feed: 0.0060 in to 0.4000 in
- Horsepower: 1
- Coolant Fed: Non-Coolant Fed
- Longitudinal Travel: 12 5/8 in
- Crossfeed Handwheel Graduation: 0.0008 in
- Table Dimensions: 8 in x 20 in
- Max. Cross Travel: 9 1/4 in
- Country of Origin (subject to change): Taiwan, Province of China
