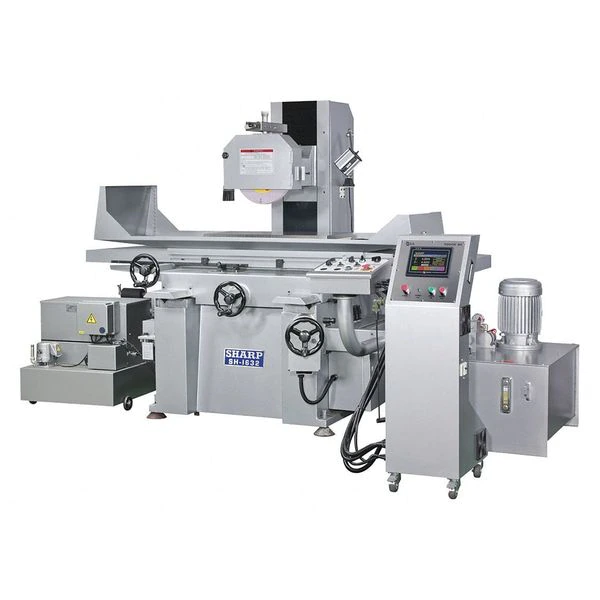

Sharp Surface Grinder, Automatic, 220V
Original price was: $506.00.$97.99Current price is: $97.99.
Surface Grinder, Table Dimensions 15.8 in x 32 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 1 in, Max. Grinding Width 8 1/8 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.2000 in, Crossfeed Handwheel Graduation 0.0005 in, Features Automatic Cross Feed, Automatic Lubrication System
... people are viewing this right now
Sharp #SH-1632 Specifications
- Zoro #: G5061983
- Mfr #: SH-1632
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 15
- Coolant Feed: Non-Coolant Fed
- Crossfeed Handwheel per Graduation: 0.0005″
- Grinding Wheel Dia.: 1 in
- Downfeed Handwheel per Graduation: 0.0002″
- Overall Length: 32 in
- Downfeed Handwheel per Revolution: 0.050″
- Longitudinal Table Travel: 24-3/8″
- Magnetic Chuck Size: 10 in x 20 in
- Operation Type: Automatic
- Crossfeed Table Travel: 6-3/4″
- Crossfeed Handwheel per Revolution: 0.200″
- Max. Grinding Length: 20 15/32 in
- Longitudinal Table Speed: 196 to 984 in/min
- Features: Automatic Cross Feed, Automatic Lubrication System
- Max. Grinding Width: 8 1/8 in
- Includes: Coolant System, Auto Lube System, Grinding Wheel, Wheel Adapter/Flange, Wheel Balancing Arbor, Wheel Balancing Stand, Diamond Dresser, Splash Guard
- Hz: 60
- Spindle to Table: 19-5/16″
- Spindle RPM: 10,000
- Overall Width: 16 in
- Wheel Width: 1-1/2″
- Wheel Bore: 5″
- Machine Weight: 7,300 lb
- Coolant Fed: Non-Coolant Fed
- Table Dimensions: 15.8 in x 32 in
- Longitudinal Travel: 24 3/8 in
- Crossfeed Handwheel Graduation: 0.0005 in
- Cross Handwheel Feed per Revolution: 0.2000 in
- Vertical Handwheel Graduation: 0.0002 in
- Grinding Wheel Bore: 5 in
- Grinding Wheel Width: 1 1/2 in
- Intermittent Feed: 0.0040 to 0.4000 in/min
- Horsepower: 15
- Hydraulic Feed: 6.6 to 82 fpm
- Spindle Center to Table Distance: 19 5/16 in
- Spindle Speed: 10,000 RPM
- Frequency: 60Hz
- Country of Origin (subject to change): Taiwan, Province of China
