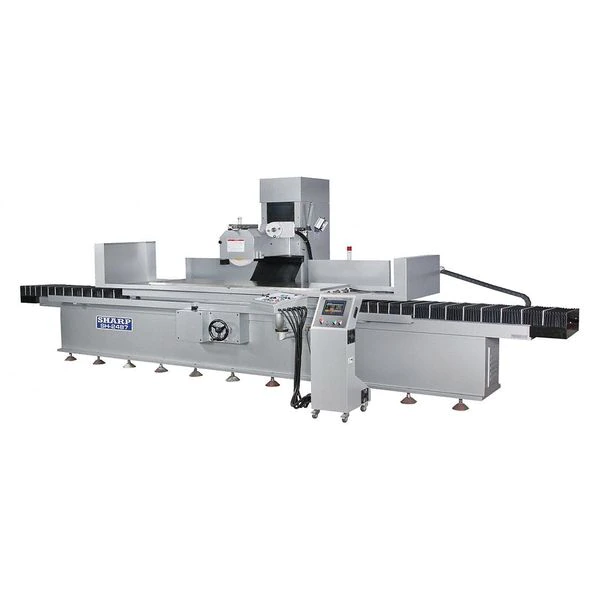

Sharp Surface Grinder, Automatic, 220V

Original price was: $411.00.Current price is: $92.99.

Surface Grinder, Table Dimensions 23.6 in x 47.2 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 14 in, Max. Grinding Width 11 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.2000 in, Crossfeed Handwheel Graduation 0.0008 in, Features Automatic Cross Feed, Automatic Lubrication System

+
  • Sharp Surface Grinder, Automatic, 220V

    Sharp Surface Grinder, Automatic, 220V

    Original price was: $411.00.Current price is: $92.99.

    Request a Call Back

    •   Size Guide

      Size Guide

      Size Chest Waist Hips
      XS 34 28 34
      S 36 30 36
      M 38 32 38
      L 40 34 40
      XL 42 36 42
      2XL 44 38 44

      All measurements are in INCHES

      and may vary a half inch in either direction.

      Size Chest Waist Hips
      2XS 32 26 32
      XS 34 28 34
      S 36 30 36
      M 38 32 38
      L 40 34 40
      XL 42 36 42

      All measurements are in INCHES

      and may vary a half inch in either direction.

      Size Chest Waist Hips
      XS 34 28 34
      S 36 30 36
      M 38 32 38
      L 40 34 40
      XL 42 36 42
      2XL 44 38 44

      All measurements are in INCHES

      and may vary a half inch in either direction.

    •  Delivery & Return

      Delivery

      We ship to all 50 states, Washington DC.
      All orders are shipped with a UPS tracking number.
      Always free shipping for orders over US $200.
      During sale periods and promotions the delivery time may be longer than normal.

      Return

      Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

      Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
      Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

      Help

      Give us a shout if you have any other questions and/or concerns.
      Email: [email protected]
      Phone: +1 (23) 456 789

    •  Ask a Question
      Sharp Surface Grinder, Automatic, 220V

      Sharp Surface Grinder, Automatic, 220V

      Original price was: $411.00.Current price is: $92.99.

      Ask a Question

        ... people are viewing this right now

      Guaranteed Safe CheckoutTrust

      Sharp #SH-2447 Specifications

      • Item: Surface Grinder
      • Phase: 3
      • Voltage: 220 V
      • HP: 10
      • Max. Grinding Width: 11 in
      • Hz: 60
      • Longitudinal Table Speed: 196 to 984 in/min
      • Overall Width: 24 in
      • Overall Length: 47 in
      • Includes: Coolant System, Wheel Balancing Stand/Arbor, Wheel Flange, Grinding Wheel, Auto Lube System, Spindlehead, Splash Guard
      • Operation Type: Automatic
      • Crossfeed Handwheel per Revolution: 0.200″
      • Wheel Width: 2″
      • Max. Grinding Length: 20 15/32 in
      • Spindle RPM: 10,000
      • Grinding Wheel Dia.: 14 in
      • Downfeed Handwheel per Graduation: 0.0002″
      • Features: Automatic Cross Feed, Automatic Lubrication System
      • Crossfeed Table Travel: 11-3/4″
      • Crossfeed Handwheel per Graduation: 0.0008″
      • Downfeed Handwheel per Revolution: 0.050″
      • Longitudinal Table Travel: 24-3/8″
      • Wheel Bore: 5″
      • Magnetic Chuck Size: 10 in x 20 in
      • Coolant Feed: Non-Coolant Fed
      • Spindle to Table: 27-5/8″
      • Machine Weight: 17,000 lb
      • Grinding Wheel Width: 2 in
      • Spindle Speed: 10,000 RPM
      • Horsepower: 10
      • Crossfeed Handwheel Graduation: 0.0008 in
      • Vertical Handwheel Graduation: 0.0002 in
      • Table Dimensions: 23.6 in x 47.2 in
      • Longitudinal Travel: 24 3/8 in
      • Frequency: 60Hz
      • Hydraulic Feed: 6.6 to 82 fpm
      • Intermittent Feed: 0.0400 to 0.6000 in/min
      • Cross Handwheel Feed per Revolution: 0.2000 in
      • Grinding Wheel Bore: 5 in
      • Coolant Fed: Non-Coolant Fed
      • Spindle Center to Table Distance: 27 5/8 in
      • Country of Origin (subject to change): Taiwan, Province of China
