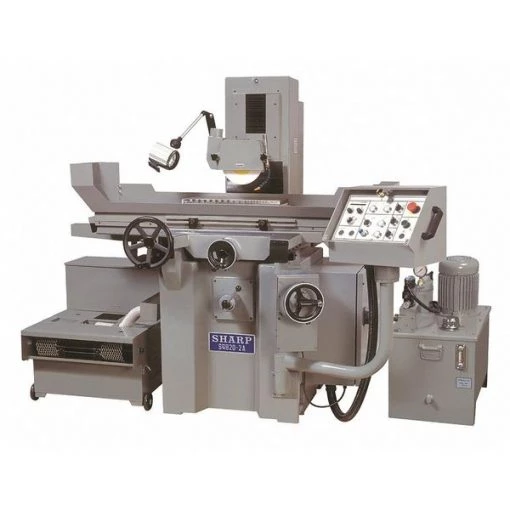

Sharp Surface Grinder, Automatic, 220V
Original price was: $571.00.$95.99Current price is: $95.99.
Surface Grinder, Table Dimensions 6 in x 18.3 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 1 in, Max. Grinding Width 6 3/4 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.1000 in, Crossfeed Handwheel Graduation 0.0001 in, Features Automatic Cross Feed, Hydraulic Table Stroke Setting
... people are viewing this right now
Sharp #SG-820-2A Specifications
- Zoro #: G5061968
- Mfr #: SG-820-2A
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 15
- Spindle RPM: 10,000
- Overall Width: 8 45/64 in
- Includes: Grinding Wheel, Splash Guard, Auto Lube System, Wheel Adapter/Flange, Wheel Balancing Arbor, Work Light, Diamond Dresser, Progra mmable Microprocessor
- Longitudinal Table Speed: 196 to 984 in/min
- Crossfeed Table Travel: 6-3/4″
- Downfeed Handwheel per Graduation: 0.0002″
- Wheel Bore: 1-1/8″
- Coolant Feed: Non-Coolant Fed
- Hz: 60
- Max. Grinding Length: 12 5/8 in
- Downfeed Handwheel per Revolution: 0.030″
- Max. Grinding Width: 6 3/4 in
- Features: Automatic Cross Feed, Hydraulic Table Stroke Setting
- Wheel Width: (2) 2-1/2″, (4) 2″
- Crossfeed Handwheel per Graduation: 0.0001″
- Crossfeed Handwheel per Revolution: 0.100″
- Operation Type: Automatic
- Magnetic Chuck Size: 6 in x 12 in
- Grinding Wheel Dia.: 1 in
- Longitudinal Table Travel: 12-5/8″
- Spindle to Table: 15-45/64″
- Overall Length: 21 45/64 in
- Machine Weight: 2,540 lb
- Grinding Wheel Width: 2 in, 2 1/2 in
- Longitudinal Travel: 12 5/8 in
- Horsepower: 1
- Coolant Fed: Non-Coolant Fed
- Crossfeed Handwheel Graduation: 0.0001 in
- Frequency: 60Hz
- Table Dimensions: 6 in x 18.3 in
- Grinding Wheel Bore: 1 1/8 in
- Hydraulic Feed: 3.3 to 82 fpm
- Spindle Speed: 10,000 RPM
- Cross Handwheel Feed per Revolution: 0.1000 in
- Spindle Center to Table Distance: 15 45/64 in
- Intermittent Feed: 0.0060 in to 0.4000 in
- Vertical Handwheel Graduation: 0.0002 in
- Country of Origin (subject to change): Taiwan, Province of China
